(174) - DRIVE SHAFT FOR REAR DRIVE AXLE, FOUR WHEEL DRIVE MODELS

Запчасти Case 586D (174) - DRIVE SHAFT FOR REAR DRIVE AXLE, FOUR WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM

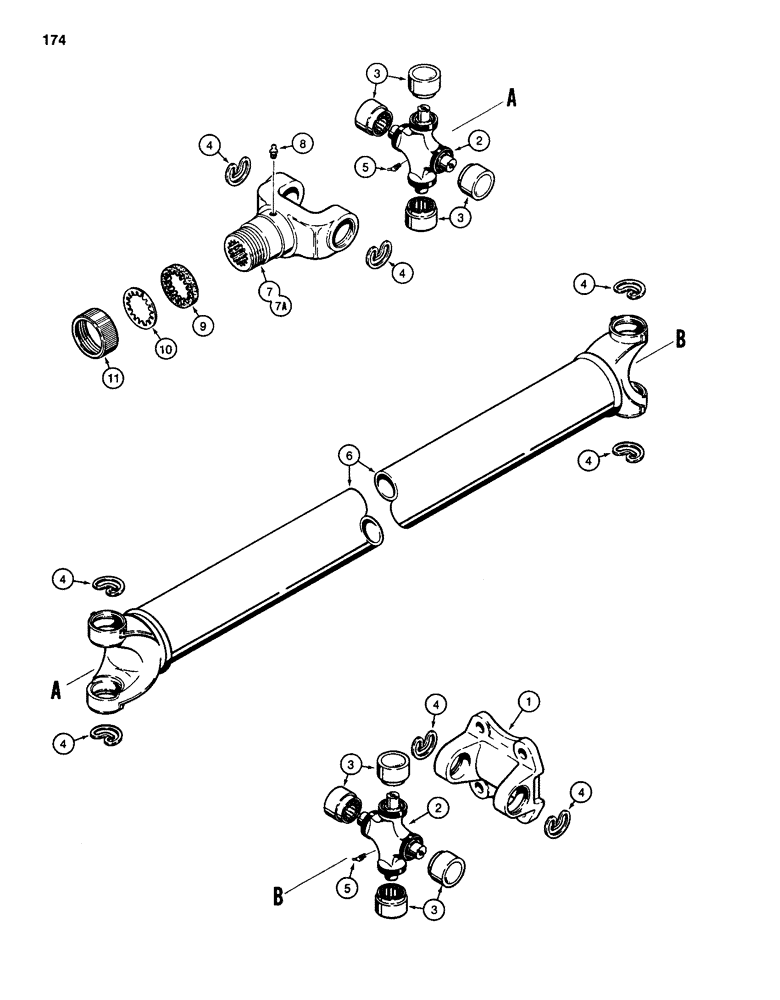

Схема запчастей Case 586D - (174) - DRIVE SHAFT FOR REAR DRIVE AXLE, FOUR WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM
3
1
4
2
4
6
7a
8
4
7
11
9
10
5
3
5
4
2
4
4
3
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D124853

DRIVE SHAFT

- rear drive axle, no longer available, for service order D128560 drive shaft

1шт.

D128560

SHAFT

DRIVE SHAFT - rear drive axle, Includes: Ref. 1 - 11

1шт.

1

S80726

YOKE

- flange

1шт.

R2713

BEARING ASSY

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

5

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE SHAFT - rear drive axle

1шт.

7

N7512

FORK

YOKE - splined, D124853 drive shaft only

1шт.

7a

N9926

END

YOKE - D128560 drive shaft only, not shown

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

N7513

SEAL

KIT - dust seal and cap, Includes: Ref. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - dust, cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - seal, steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP - dust seal retaining

1шт.
