Запчасти Case 586D (168) - REAR DRIVE AXLE CONTROL, FOUR WHEEL DRIVE MODELS BEFORE TRANSAXLE S/N 16270319 (27) - REAR AXLE SYSTEM

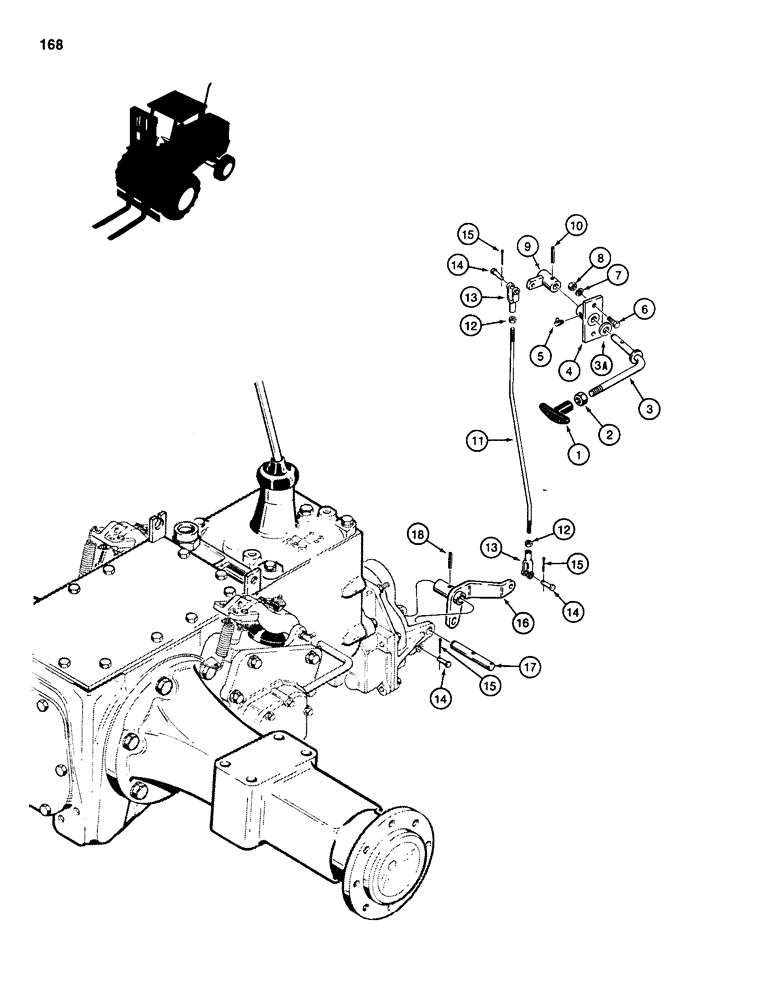

Схема запчастей Case 586D - (168) - REAR DRIVE AXLE CONTROL, FOUR WHEEL DRIVE MODELS BEFORE TRANSAXLE S/N 16270319 (27) - REAR AXLE SYSTEM
14
10
13
8
15
3
18
3a
5
2
4
9
12
15
11
1
13
15
12
14
6
7
16
17
14

Артикул

Название

Примечание

Количество

1

D120758

HANDLE

- T-grip

1шт.

2

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

3

D125293

HANDLED SHAFT

LEVER - shift

1шт.

3a

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

4

D89341

BRACKET

- lever bearing

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

9

D125296

ARM/LIFTING DEVICE

LEVER - pivot

1шт.

10

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

11

D125295

ROD

- control

1шт.

12

129-123

NUT,3/8"-24, G5

2шт.

13

213-41

ADJUSTABLE CLEVIS,3/8"-24

metal, plated, rod end, replaces fiberglass clevis on some models 3/8"-24

2шт.

14

141-54

CLEVIS PIN,3/8" x 1 1/16"

rod end 3/8" x 1 1/16"

3шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

3шт.

16

D126535

LEVER ASSY.

BELLCRANK - shift lever, Serial Range: control-transaxle

1шт.

17

D126534

SHAFT

- bellcrank pivot

1шт.

18

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

Выбрано товаров: 19
