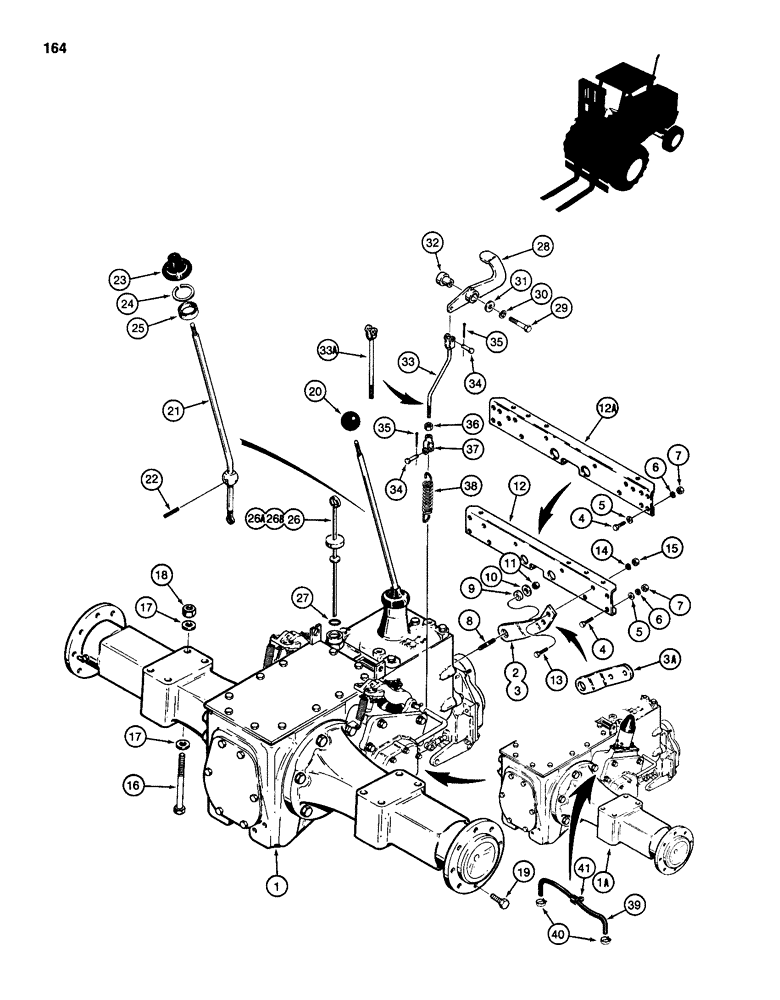

Запчасти Case 586D (164) - TRANSAXLE AND DIFFERENTIAL LOCK, FOUR WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM

AR179043

REMAN-TRANSAXLE, 4WD

REMAN - transaxle

1шт.

1

A168796

AXLE

TRANSAXLE - complete, with differential lock and drop box, transaxle SN 16249203 - 16270318, parts list Figures 187-243

1шт.

1a

A179043

AXLE

TRANSAXLE - complete, with differential lock and drop box, transaxle SN 16270319 and after, parts list Figures 187-243

1шт.

2

D122704

SUPPORT

- right-hand, used with A168796 transaxle, Ref. 1

1шт.

3

D122705

SUPPORT

- left-hand, used with A168796 transaxle, Ref. 1

1шт.

3a

D129915

SUPPORT

- transaxle, used with A179043 transaxle, Ref. 1A only

2шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

A50237

STUD

- 5/8" - 11 NC x 2-1/2", hardened

2шт.

9

D122706

BUSHING

- support

2шт.

10

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

2шт.

11

129-183

NUT,5/8"-11, G8

2шт.

12

D125848

BRACKET

- crossmember, no longer used, order D129941 bracket

1шт.

12a

D129941

BRACKET

- crossmember

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

16

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex head, 3/4" - 10 NC x 8", plated, axle to frame

8шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

16шт.

18

129-108

NUT,3/4"-10, G5

8шт.

19

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

- Lug

16шт.

20

A23885

KNOB

- shift lever

1шт.

21

A140891

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 22

1шт.

22

135-329

PIN

GROOVE PIN - 1/8" x 1-1/4"

1шт.

23

A26956

DUST CAP

COVER - rubber, shift lever

1шт.

24

A26836

RING, SNAP

RETAINING RING - shift lever

1шт.

25

A7923

SEAT

- shift lever

1шт.

26

A154967

DIPSTICK

- transaxle, 14-1/2" total length, used before tractor PIN 17019708

1шт.

26a

D135008

DIPSTICK

- transaxle, 14-1/2" total length, used on tractor PIN 17019708 and after, no longer used, order D134734 dipstick, Includes: Ref. 27

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- all dipsticks

1шт.

28

D125318

PEDAL

- differential lock

1шт.

29

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

31

D64050

WASHER

- hardened

1шт.

32

D125312

SPACER

- pedal pivot

1шт.

33

D125416

ROD

- offset, differential lock, no longer used, order D128655 rod

1шт.

33a

D128655

ROD

- straight, differential lock

1шт.

34

141-54

CLEVIS PIN,3/8" x 1 1/16"

rod 3/8" x 1 1/16"

2шт.

35

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

36

129-123

NUT,3/8"-24, G5

1шт.

37

213-41

ADJUSTABLE CLEVIS,3/8"-24

plated, differential lock rod, replaces fiberglass clevis on some models 3/8"-24

1шт.

38

A59470

SPRING

- transaxle to differential lock

1шт.

39

D134065

HOSE

- 1/4" (6 mm) ID x 21-5/8" (550 mm) long, cut from D134170 bulk hose, see below, vent, brake actuator, used with A179043 transaxle, Ref. 1A

1шт.

40

F64936

CLAMP

- vent hose

2шт.

41

49838

CLAMP

- P-type, uses existing transaxle cover plate mounting hardware

1шт.

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.
