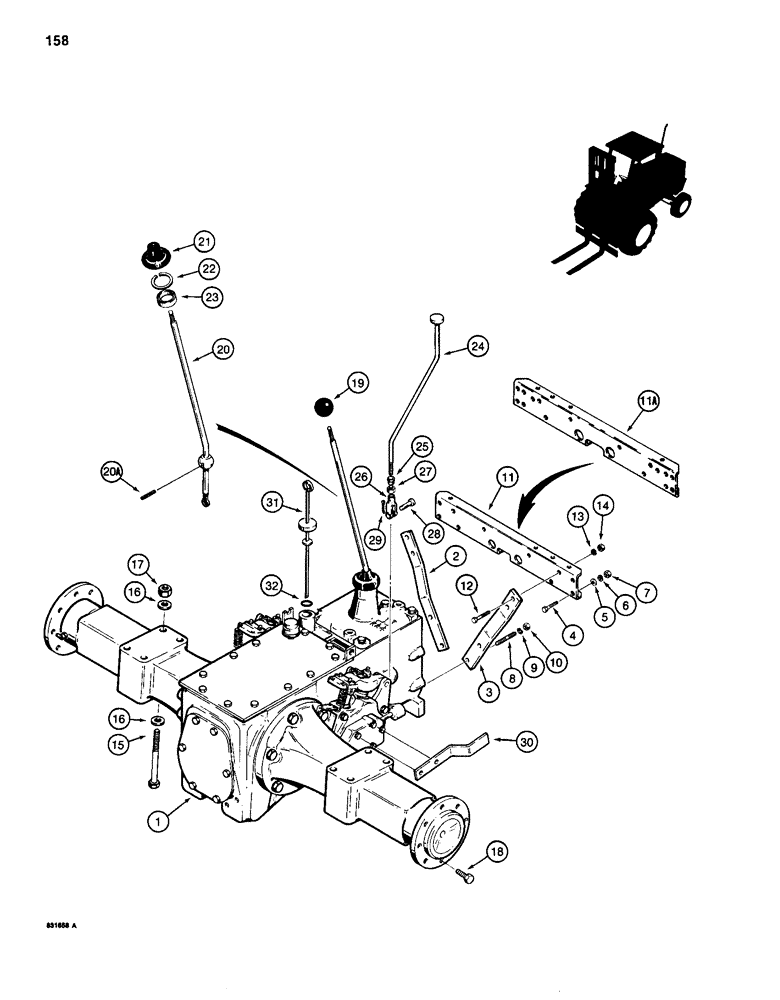

Запчасти Case 586D (158) - TRANSAXLE AND DIFFERENTIAL LOCK, TWO WHEEL DRIVE MODELS BEFORE TRANSAXLE S/N 16249203 (27) - REAR AXLE SYSTEM

1

A140534

ASSEMBLY

TRANSAXLE - complete, with differential lock, parts list Figures 187-243

1шт.

2

D90453

SUPPORT

- right-hand

1шт.

3

D90452

SUPPORT

- left-hand

1шт.

4

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

5

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

8

D69763

STUD

- 1/2" - 20 NF

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-125

NUT,1/2"-20, G5

4шт.

11

D125848

BRACKET

- crossmember, no longer used, order D129941 bracket

1шт.

11a

D129941

BRACKET

- crossmember

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

15

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex head, 3/4" - 10 NC x 8", plated, axle to frame

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

16шт.

17

129-108

NUT,3/4"-10, G5

8шт.

18

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

- Lug

16шт.

19

A23885

KNOB

- shift lever

1шт.

20

A140891

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 20A

1шт.

20a

A156515

PIN

GROOVE PIN - 1/8" x 1-1/4"

1шт.

21

A26956

DUST CAP

COVER - rubber, shift lever

1шт.

22

A26836

RING, SNAP

RETAINING RING - shift lever

1шт.

23

A7923

SEAT

- shift lever

1шт.

24

D75768

ROD

- differential lock

1шт.

25

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

- lever to floor plate

1шт.

26

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - 3/8", lever end

1шт.

27

129-123

NUT,3/8"-24, G5

1шт.

28

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Lever 3/8" x 1.060"

1шт.

29

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

30

D74240

PLATE

BAR - lever stop

1шт.

31

A154967

DIPSTICK

- transaxle, Includes: Ref. 32

1шт.

32

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.
