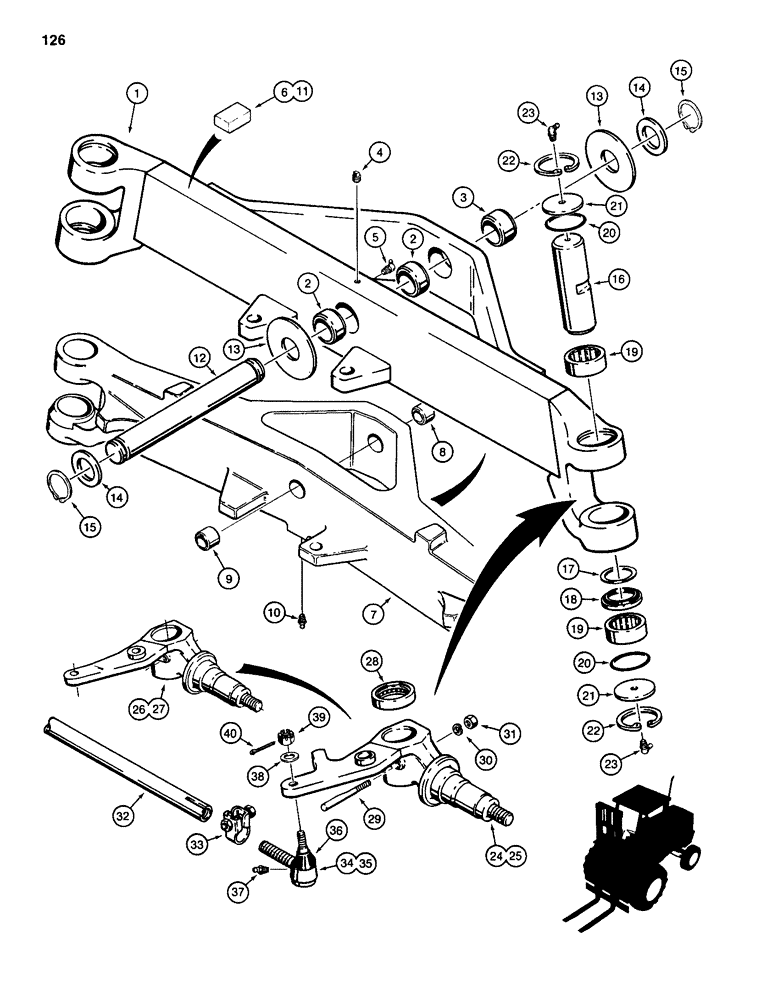

Запчасти Case 586D (126) - REAR AXLE AND SPINDLES, TWO WHEEL DRIVE MODELS (27) - REAR AXLE SYSTEM

1

D18450

AXLE

ASSEMBLY - rear, welded, no longer used, for ordering information see note below, Includes: Ref. 2 - 6

1шт.

No longer used, for service order D125824 axle (Ref. 7), D125862 spindle (Ref. 26), D125863 spindle (Ref. 27), 219-1 grease fitting (Ref. 10), and D126114 stop block (Ref. 11).

1шт.

2

D61241

BUSHING,44.68mm ID x 57.15mm OD x 23.88mm L

- axle

2шт.

3

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- axle

1шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

5

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" pipe, self-tapping

1шт.

6

D73261

PLATE

BLOCK - stop

2шт.

Stop blocks must be mounted in vertical position on 584 models with 28 foot mast and in horizontal position on 585 models with 21-1/2 foot mast.

1шт.

7

D125824

AXLE

ASSEMBLY - rear, cast, Includes: Ref. 8 and 9

1шт.

8

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- axle

1шт.

9

D126498

BUSHING,44.68mm ID x 57.12mm OD x 50mm L

- axle

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used with Ref. 7 only

1шт.

11

D126114

BLOCK

- stop, used with Ref. 7 only

1шт.

Stop blocks must be mounted in vertical position on 584 models with 28 foot mast and in horizontal position on 585 models with 21-1/2 foot mast.

1шт.

12

D64171

PIN,44.45mm OD x 352.55mm L

- axle pivot

1шт.

13

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

- spacer, large OD

1шт.

14

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-3/4", special, spacer, small OD

2шт.

15

D25280

SNAP RING,#175, Ext

Ring, Snap, , axle pivot pin #175, Ext

2шт.

16

D72337

PIN,50.8mm OD x 168.91mm L

KING PIN - spindle

2шт.

17

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

THRUST WASHER - bearing

2шт.

18

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

OIL SEAL - bearing

2шт.

19

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

ROLLER BEARING - king pin

4шт.

20

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, King pin

4шт.

21

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - king pin

4шт.

22

A27463

SNAP RING,2.375", Int, #237

King pin 2.375", Int, #237

4шт.

23

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" pipe, self-tapping, king pin

4шт.

24

D86343

SPINDLE

left-hand, used with Ref. 1 only

1шт.

25

D86344

SPINDLE

right-hand, used with Ref. 1 only

1шт.

26

D125862

SPINDLE

left-hand, used with Ref. 7 only

1шт.

27

D125863

SPINDLE

right-hand, used with Ref. 7 only

1шт.

28

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

- spindle

2шт.

29

D57486

PIN

- threaded, king pin lock

2шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

129-125

NUT,1/2"-20, G5

2шт.

D73398

ROD

TIE ROD ASSEMBLY - rear axle, Includes: Ref. 32 - 37

1шт.

32

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

- tie rod

1шт.

33

D73799

CLAMP

- tie rod, includes hardware

2шт.

34

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, left-hand

1шт.

35

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, right-hand, Includes: Ref. 36 and 37

1шт.

36

N7681

BOOT

COVER - dust, left-hand and right-hand ball joints

1шт.

37

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

38

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- flat, 5/8", special

1шт.

39

129-610

SLOTTED NUT,5/8"-18, G5

2шт.

40

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.
