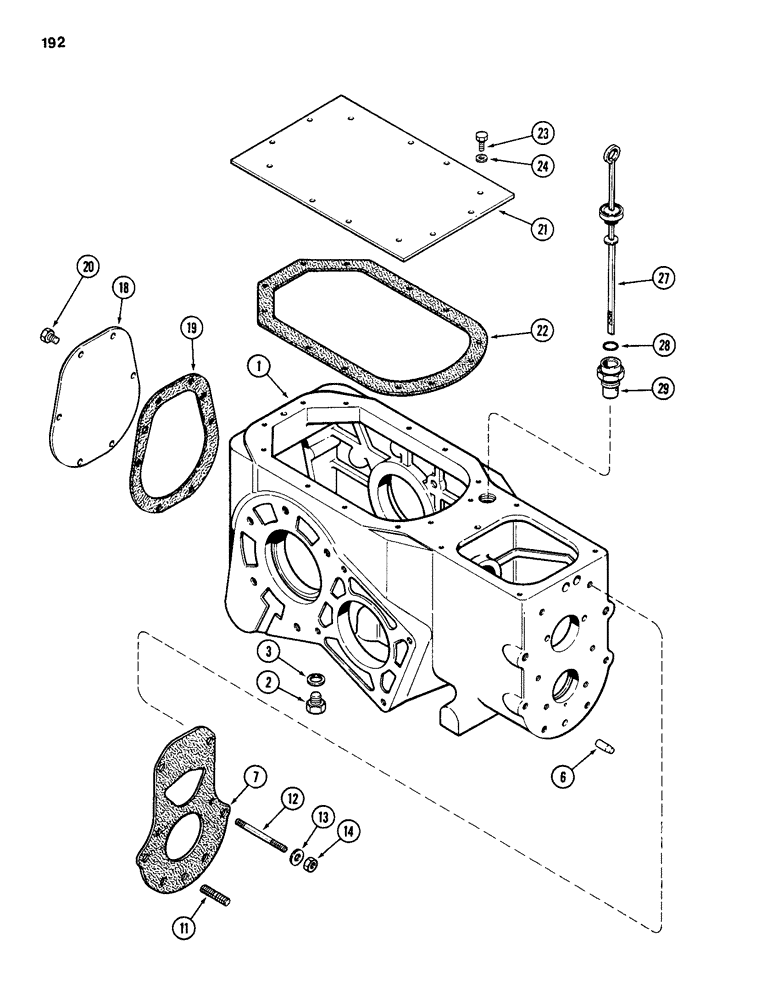

Запчасти Case 586D (192) - TRANSAXLE TRANSMISSION HOUSING, FOUR WHEEL DRIVE, TRANSMISSION SERIAL NO. 16270319 AND AFTER (21) - TRANSMISSION

1

A157659

HOUSING

- transmission

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A29540

PIN

- dowel, locating

1шт.

7

A156248

GASKET

GASKET - front cover to transmission housing

1шт.

11

A157625

STUD

- front mount, 2-1/2 inch

2шт.

12

A153248

STUD

- cover, center, 4-13/16 inch

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

18

A39105

COVER

- transmission housing, rear

1шт.

19

G10447

GASKET

- rear cover to transmission housing

1шт.

JI CASE INSTALLED HOUSING MAY NOT HAVE A COVER GASKET. IF REAR HOUSING COVER IS REMOVED, INSTALL A GASKET PRIOR TO REASSEMBLY.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A153744

COVER

- transmission housing, top rear

1шт.

22

A153777

GASKET

GASKET - top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch (Grade 8)

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- cover bolt, hardened

10шт.

27

A154967

DIPSTICK

ASSEMBLY - oil gauge, Includes: Ref. 28

1шт.

28

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
