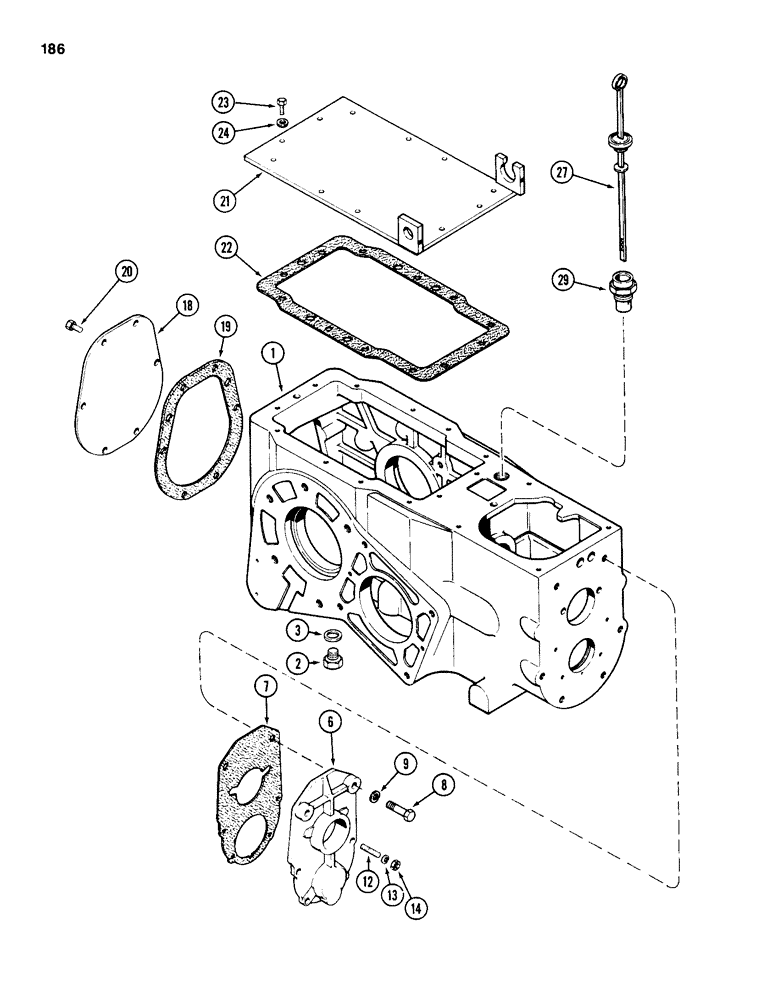

Запчасти Case 586D (186) - TRANSAXLE TRANSMISSION HOUSING, PRIOR TO TRANSMISSION SERIAL NO 16249203, 2WD AND 4WD (21) - TRANSMISSION

1

A157661

HOUSING

- transmission (Replaces A51952 and A156247)

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A51953

COVER

- transmission housing, rear

1шт.

7

G46849

GASKET

- rear cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- hex, 1/2 NC x 1 inch

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

12

A29717

STUD

- center, 1-1/2 inch

2шт.

12

G10710

STUD

- bottom, 1-3/4 inch

2шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

129-123

NUT,3/8"-24, G5

4шт.

18

A39105

COVER

- transmission housing, front

1шт.

19

G10447

GASKET

- front cover to transmission housing

1шт.

PRODUCTION HOUSING MAY NOT HAVE A COVER GASKET. IF REAR HOUSING COVER IS REMOVED, INSTALL A GASKET PRIOR TO REASSEMBLY.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

21

A155700

COVER

- transmission housing, top

1шт.

22

A152540

ENGINE ASSEMBLY

GASKET - top cover to transmission housing

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch

10шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- hardened, cover bolt

10шт.

27

A154967

DIPSTICK

ASSEMBLY - oil gauge

1шт.

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

29

A154850

TUBE

- dipstick and oil filler

1шт.
