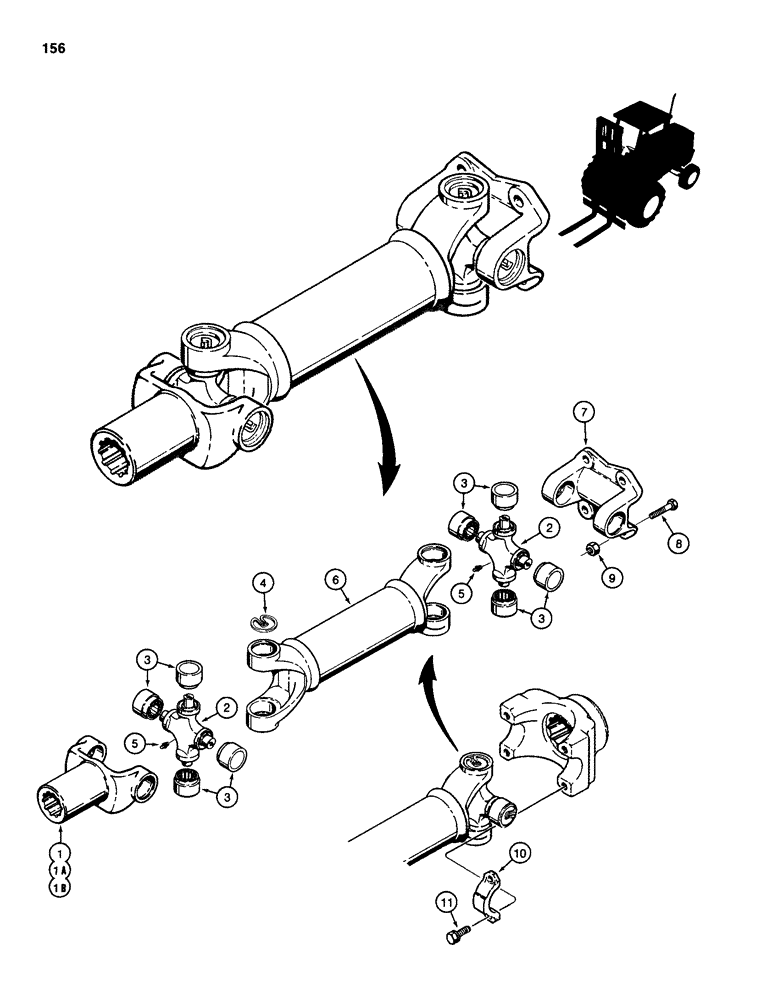

Запчасти Case 586D (156) - DRIVE SHAFT, POWER SHUTTLE TO TRANSAXLE (21) - TRANSMISSION

D73777

DRIVE SHAFT

ASSEMBLY - to transaxle, mounts to power shuttle with W13668 bracket, Ref. 7, Includes: Ref. 1 - 7

1шт.

D125882

DRIVE SHAFT

ASSEMBLY - to transaxle, mounts to power shuttle with D124146 strap, Ref. 10, no longer available, order D128559 drive shaft, Includes: Ref. 1 - 7

1шт.

D128559

DRIVE SHAFT

ASSEMBLY - to transaxle, mounts to power shuttle with D124146 strap, Ref. 10, Includes: Ref. 1 - 7

1шт.

1

D75847

YOKE

- end, to transaxle, used with D73777 drive shaft only, Includes: Ref. 1C

1шт.

1a

N6834

YOKE

- end, to transaxle, used with D125882 drive shaft only, Includes: Ref. 1C

1шт.

1b

N9815

YOKE

- end, to transaxle, used with D128559 drive shaft only, Includes: Ref. 1C

1шт.

1c

N13653

PLUG

- grease, N6834 or N9815 yoke, not shown

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

11256

SNAP RING

- retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE SHAFT - forklift

1шт.

7

W13668

YOKE

BRACKET - to power shuttle, used with D73777 drive shaft only

1шт.

8

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

Special thread length Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

9

80855

NUT,Hex, 3/8" - 24

NUT - hex, self-locking, 3/8" - 24 NF

4шт.

10

D124146

CLAMP

STRAP - bearing, used with D125882 or D128559 drive shaft only

2шт.

11

D124151

BOLT

- special, used with D124146 strap (Ref. 10)

4шт.
