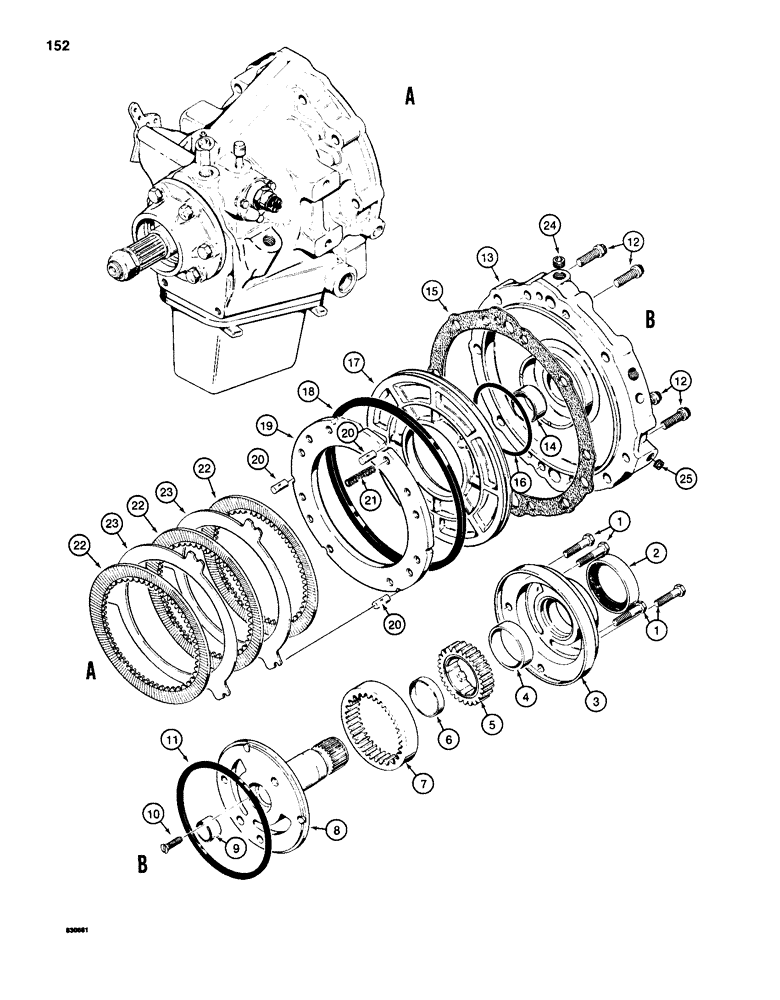

Запчасти Case 586D (152) - POWER SHUTTLE, CHARGING PUMP AND REVERSE CLUTCH (21) - TRANSMISSION

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figure 145 for service information, parts list Figures 145-153, Includes: Ref. 1 - 25

1шт.

Check the part number on the power shuttle serial number plate before ordering.

1шт.

1

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

R29995

PUMP

CHARGING PUMP ASSEMBLY - power shuttle, Includes: Ref. 2 - 10

1шт.

2

N8071

OIL SEAL,49.23mm ID x 68.53mm OD x 8.23mm Thk

- oil

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - charging pump, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - charging pump

1шт.

5

NSS

NOT SOLD SEPARAT

DRIVE GEAR - charging pump, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - charging pump gear drive

1шт.

7

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - charging pump

1шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT - torque converter, Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - torque converter support

1шт.

10

171-100

SCREW,Sl Flat Hd, #10 - 24 x 3/4"

MACHINE SCREW - flat head slotted, No. 10 - 24 NC x 3/4"

1шт.

11

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

charging pump

1шт.

12

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

Ferry head, 3/8" - 16 NC x 1-1/4", grade 8

4шт.

D50022

ADAPTER

COVER ASSEMBLY - power shuttle, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - power shuttle

1шт.

14

D50074

BUSHING,34.92mm ID x 38.13mm OD x 17.46mm L

cover

1шт.

15

D50033

GASKET,0.58mm Thk

, Serial Range: cover-housing

1шт.

16

D50034

O-RING,0.139" Thk x 3.484" ID

O-RING - small

1шт.

17

D50035

PISTON

- reverse clutch

1шт.

18

D50036

SEALING RING,194.51mm ID x 232.84mm OD x 3.17mm Thk

RING - piston seal, square section

1шт.

19

D50037

PLATE

- pressure, reverse clutch

1шт.

20

D50038

PIN

DOWEL PIN - pressure plate

3шт.

21

D50039

SPRING

- pressure plate

11шт.

22

D50040

PLATE

DISC - friction, internal tooth

3шт.

23

D50041

CLUTCH PLATE,155.57mm ID x 215.09mm OD x 1.8mm Thk

DISC - metal, external flange

2шт.

24

221-841

PLUG

- hex socket head, 1/4" NPT

1шт.

25

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.
