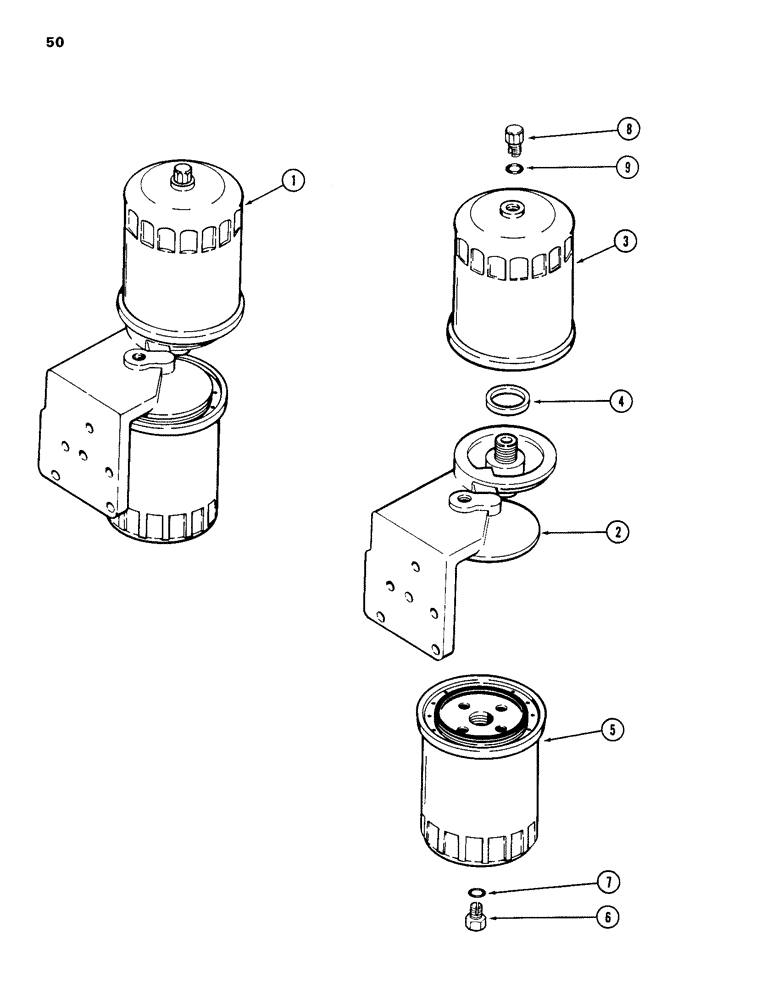

Запчасти Case 586D (050) - FUEL FILTER, 188 DIESEL ENGINE (10) - ENGINE

1

A154934

FILTER

ASSEMBLY - fuel, Includes: Ref. 2 - 9

1шт.

2

A154909

HEAD

- filter base

1шт.

A151281

FUEL FILTER

FILTER KIT - fuel, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - secondary (15/16 inch threads) (Order A151281) (Reference No. A39687), Includes: Ref. 4

1шт.

4

A42315

GASKET

- filter to head, 15/16 x 1-1/4 x 1/4 inch (24 x 32 x 6 mm)

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - primary (13/16 inch threads) (Order A151281) (Reference A39868)

1шт.

6

G49080

PLUG

- 12 point head, nylon, primary filter drain

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Filter drain, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.
