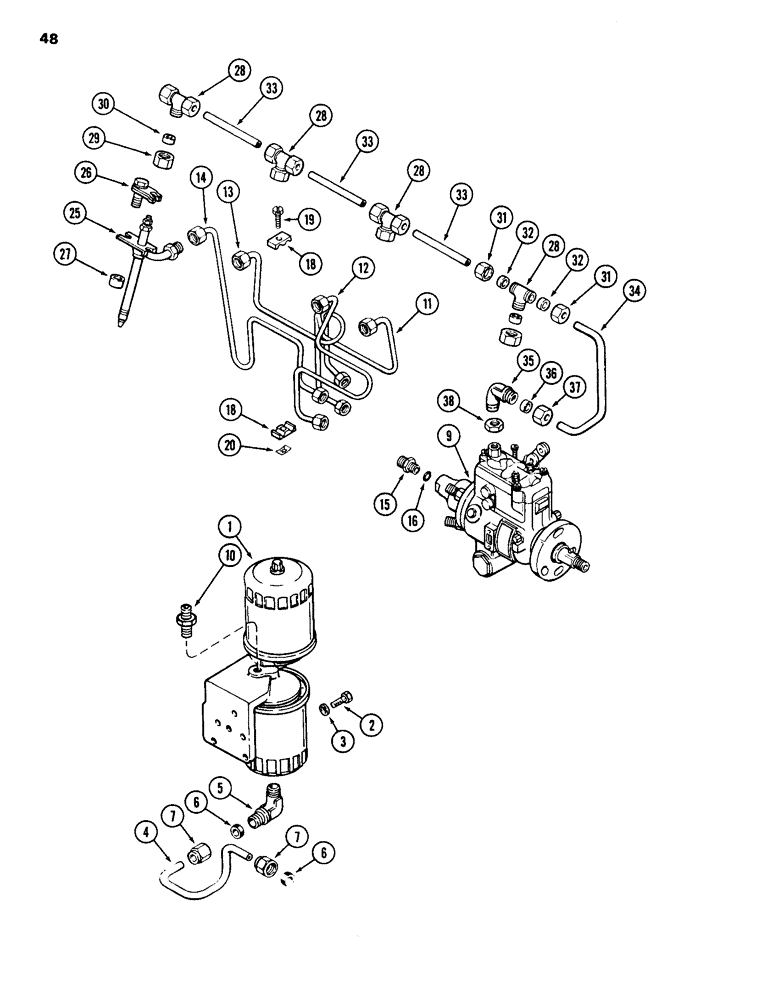

Запчасти Case 586D (048) - FUEL INJECTION AND FILTER SYSTEM, 188 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (See Figure 51)

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

A154898

TUBE

- fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - 90 degree, 3/8 tube 5/8-24 thread x 1/4 inch PT, Includes: Ref. 6 and 7

1шт.

6

222-103

SLEEVE,5/16" Tube

- for 3/8 inch tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - for 3/8 inch tube

1шт.

9

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 52)

1шт.

10

222-4025

HYD CONNECTOR,9/16"-24 x 1/4" NPTF

CONNECTOR - straight, 5/16 x 1/4 inch PT

1шт.

11

A153358

TUBE

ASSEMBLY - pump to No. 1 nozzle

1шт.

12

A153359

TUBE

ASSEMBLY - pump to No. 2 nozzle

1шт.

13

A153360

TUBE

ASSEMBLY - pump to No. 3 nozzle

1шт.

14

A153361

TUBE

ASSEMBLY - pump to No. 4 nozzle

1шт.

15

A51986

FITTING

- pump inlet

1шт.

16

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (11 x 2 mm)

1шт.

18

A58709

BRACKET

CLAMP - injection tube

6шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- round head, No. 10-24 x 1 inch

3шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed lock, No. 10-24

3шт.

25

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injector (See Figure 57)

4шт.

26

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

27

A37839

SPACER

- clamp

4шт.

28

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off lines

4шт.

29

A58961

NUT

-, Serial Range: tee-nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

4шт.

31

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

8шт.

32

222-102

SLEEVE,1/4" Tube

8шт.

33

A38644

TUBE

- fuel leak-off

3шт.

34

A142906

TUBE

- fuel leak-off (to injection pump)

1шт.

35

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 90 degree, 1/4 tube 1/2-24 thread x 1/8 inch PT, Includes: Ref. 36 and 37

1шт.

36

222-102

SLEEVE,1/4" Tube

1шт.

37

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube

1шт.

38

A38160

LOCK NUT

- sealing 1/8 inch PT

1шт.
