Запчасти Case 586D (046) - THROTTLE CONTROL LINKAGE (10) - ENGINE

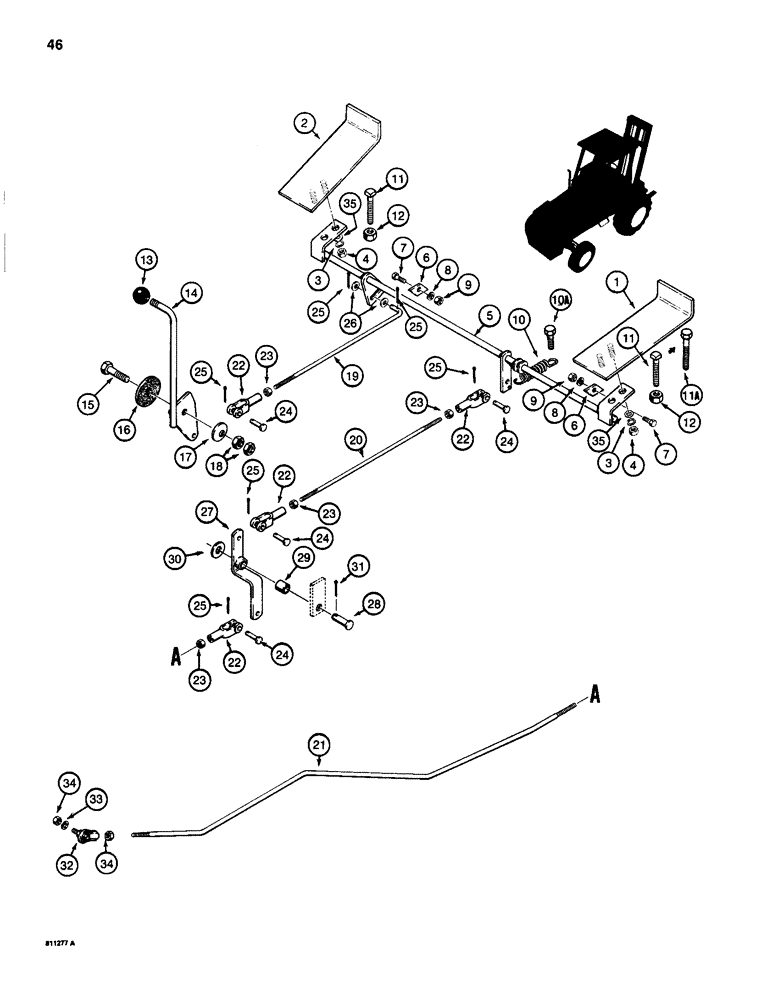

Схема запчастей Case 586D - (046) - THROTTLE CONTROL LINKAGE (10) - ENGINE
34
4
8
16
6
31
9
19
22
18
23
6
3
3
26
12
12
35
13
11
1
28
11
20
22
35
8
17
24
7
24
7
25
24
21
25
34
5
22
10
10a
24
23
2
11a
25
4
27
9
25
25
25
22
30
14
33
15
29
23
32
23

Артикул

Название

Примечание

Количество

1

D76903

PEDAL

- foot throttle, right-hand

1шт.

2

D76904

PEDAL

- foot throttle, left-hand

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

5

R35649

SHAFT

- pedal

1шт.

6

D67902

STRIP

PLATE - shaft retaining

2шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

D129921

SPRING

- throttle return

1шт.

10a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Welded to floorplate Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

11

181-652

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

- square head, 3/8" - 16 NC x 2-1/4", throttle stop, no longer

1шт.

used, order 113-250 bolt

2шт.

11a

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

D59912

KNOB

- hand throttle

1шт.

14

R35661

LEVER

- hand throttle

1шт.

15

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

R15071

DISC

FRICTION DISC - throttle lever

1шт.

17

R14771

WASHER

BELLEVILLE SPRING - throttle lever

1шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

19

R35667

ROD

- hand throttle to pedal shaft

1шт.

20

D68927

THREADED ROD

ROD - pedal, Serial Range: shaft-pivot

1шт.

21

D121816

ROD

- pivot to injection pump

1шт.

22

H44198

YOKE

CLEVIS - throttle rods, 5/16" - 24 NF, metal, plated, replaces fiberglass

1шт.

clevis on some models

4шт.

23

129-122

NUT,5/16"-24, G5

4шт.

24

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

25

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

26

195-103

WASHER,5/16"

- flat, , plated 5/16"

2шт.

27

D77235

PIVOT

LEVER - throttle rods, pivot

1шт.

28

141-6

CLEVIS PIN,1/2" x 1.360"

- 1/2" X 1-3/8"

1шт.

29

A141259

BUSHING

- throttle rod pivot

1шт.

30

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

31

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

32

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - adjustable, 1/4" - 28 NF threads

1шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

34

129-121

NUT,1/4"-28, G5

2шт.

35

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

Выбрано товаров: 39
