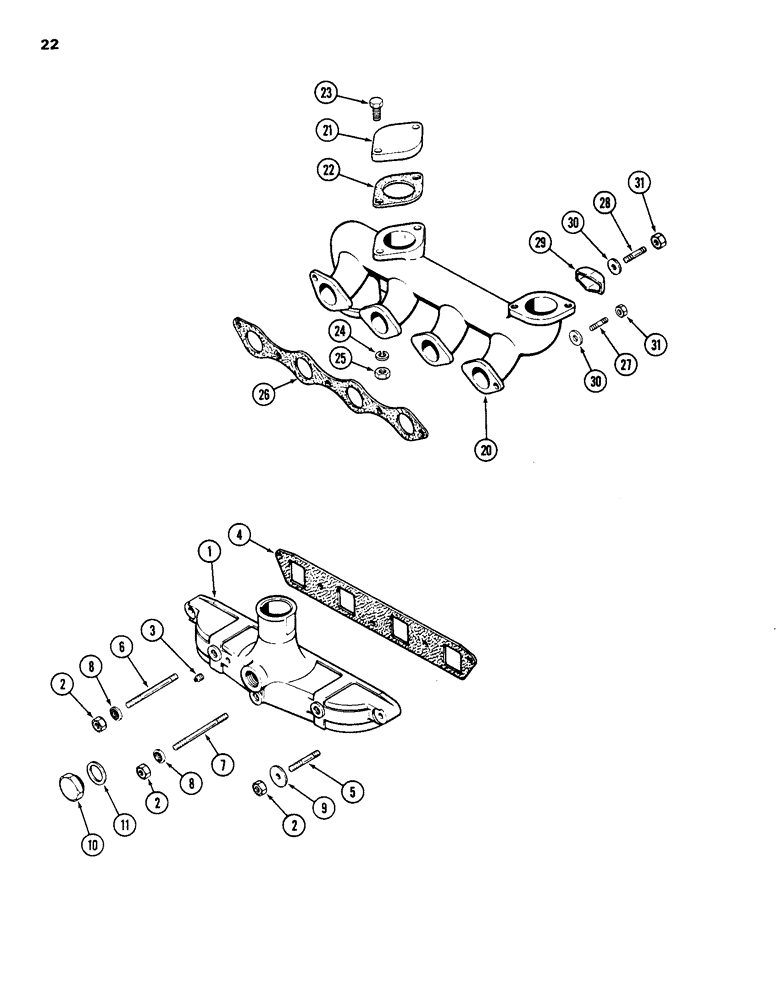

Запчасти Case 586D (022) - MANIFOLDS, 188 DIESEL ENGINE, INTAKE MANIFOLD, EXHAUST MAINFOLD (10) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY - intake, manifold, Includes: Ref. 2 and 3

1шт.

2

25-166

NUT,3/8"-16, G5, Hvy

- 3/8 inch NC, intake manifold

5шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8 inch PT, intake manifold

1шт.

4

G46871

GASKET

- manifold to head, intake manifold

1шт.

5

A140924

STUD

- end, 2-7/16 inch, intake manifold

2шт.

6

A153248

STUD

- intermediate, 4-13/16 inch, intake manifold

2шт.

7

A51500

STUD

- center, 5-5/16 inch, intake manifold

1шт.

8

A50694

DISC

WASHER - intermediate stud holes, intake manifold

3шт.

9

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch (10 x 21 x 2 mm), intake manifold

2шт.

10

A20917

PLUG

- manifold (Heater hole), intake manifold

1шт.

11

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold

1шт.

20

A39233

MANIFOLD

ASSEMBLY - exhaust, manifold, Includes: Ref. 21 - 25

1шт.

21

A38188

PLATE

- cover, exhaust manifold

2шт.

22

G46853

MANIFOLD GASKET

- cover plate, exhaust manifold

2шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Exhaust manifold Hex, 3/8"-16 x 1 1/2", G5

2шт.

24

195-521

WASHER,5/16", SAE

- lock, 3/8 inch, exhaust manifold

4шт.

25

131-903

NUT,3/8"-16

NUT - Seez-Pruf, 3/8 inch NC, exhaust manifold

4шт.

26

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

27

A29431

STUD

- ends, 1-3/4 inch, exhaust manifold

2шт.

28

A140924

STUD

- clamps, 2-1/16 inch, exhaust manifold

3шт.

29

A35028

CLAMP

- manifold, exhaust manifold

3шт.

30

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), exhaust manifold

5шт.

31

131-903

NUT,3/8"-16

NUT - Seez-Pruf, 3/8 inch NC, exhaust manifold

5шт.
