Запчасти Case 586D (018) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE

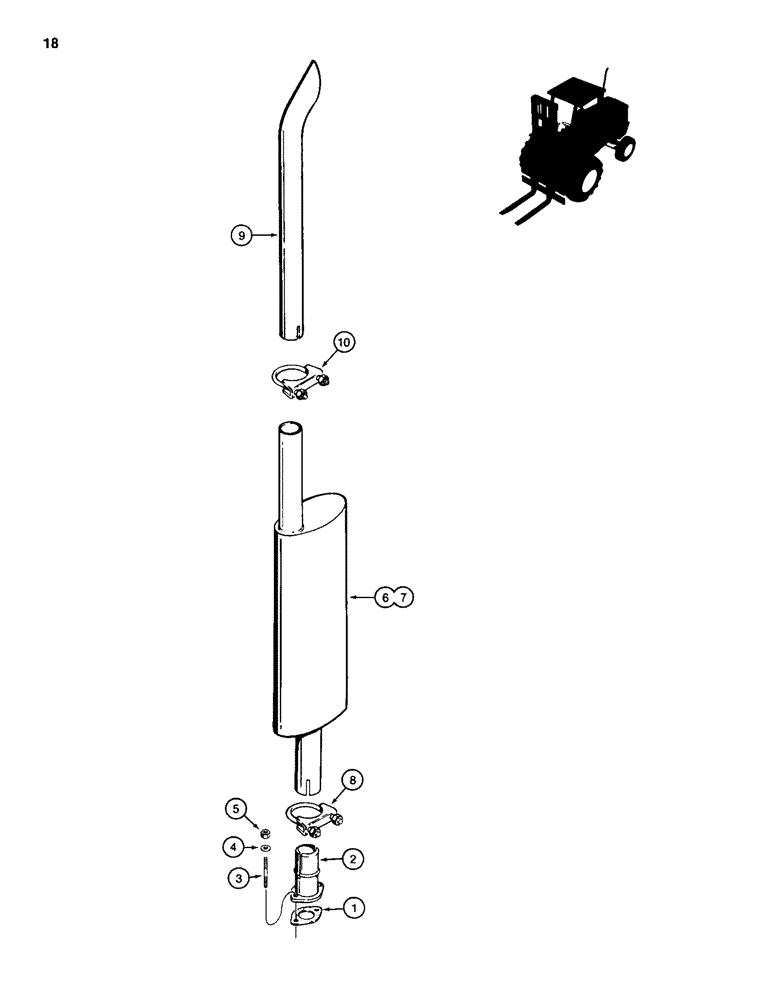

Схема запчастей Case 586D - (018) - MUFFLER AND EXHAUST SYSTEM (10) - ENGINE
8
3
1
2
5
6
9
10
7
4

Артикул

Название

Примечание

Количество

1

G46853

MANIFOLD GASKET

- manifold to exhaust pipe, no longer used, not required

1шт.

2

D73198

OUTLET

EXHAUST PIPE - muffler

1шт.

3

A59077

STUD

- 3/8" - 16 NC x 1-13/16"

2шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

5

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

A39561

MUFFLER

- engine exhaust, standard, if used

1шт.

7

D55532

MUFFLER

- increased noise control, if used

1шт.

8

A13240

CLAMP,2-5/8" ID

- muffler, includes hardware

1шт.

9

D70514

PIPE, EXHAUST SYSTEM

EXTENSION - muffler exhaust

1шт.

10

G45410

CLAMP

- muffler extension, includes hardware

1шт.

Выбрано товаров: 10
