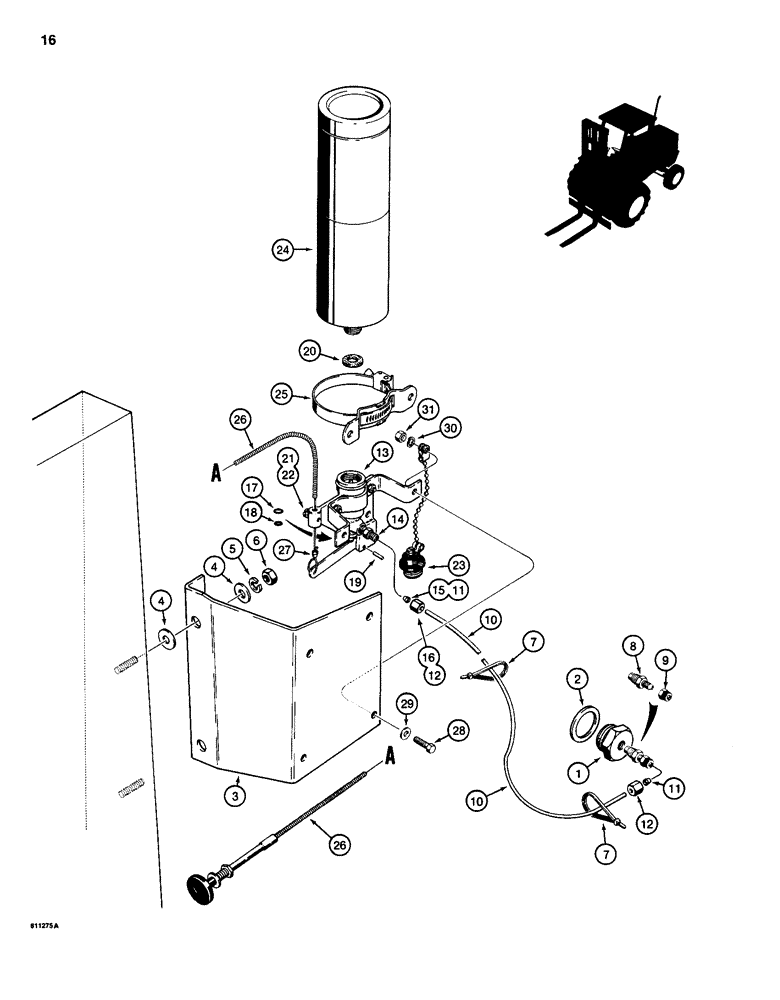

Запчасти Case 586D (016) - COLD START SYSTEM (10) - ENGINE

1

D79761

PLUG

- manifold

1шт.

2

A20916

MANIFOLD GASKET

WASHER - special

1шт.

3

D70731

BRACKET

- cold start clamp and valve mounting

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

5

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

D81319

NOZZLE INJECTION

NOZZLE ASSEMBLY - cold start, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

9

NSS

NOT SOLD SEPARAT

NUT AND SLEEVE - one piece, service with 222-660 nut and 222-650^.text0^sleeve, see Refs. 14 and 15

1шт.

D55947

TUBE

ASSEMBLY - valve to nozzle, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - valve to nozzle, 60" long (1524 mm) long, cut to 48" (1219 mm)

1шт.

11

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

2шт.

12

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

2шт.

D88743

VALVE

ASSEMBLY - actuator, Includes: Ref. 13 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - actuator

1шт.

14

NSS

NOT SOLD SEPARAT

ADAPTER - straight, Includes: Ref. 15 and 16

1шт.

15

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

16

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

D55951

REPAIR KIT

KIT - service, valve seal, Includes: Ref. 17 - 20

1шт.

17

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- internal plunger, large

1шт.

18

A51274

O-RING,0.145" ID x 0.285" OD

- internal plunger, small

1шт.

19

135-313

GROOVED PIN,3/32" x 1/2"

Pin, Grooved, 3/32" x 1/2"

1шт.

20

D74422

GASKET

SEAL - cork, Serial Range: valve-cylinder

1шт.

21

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2", plated

1шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

23

N8826

PLUG

- valve, with chain, if used

1шт.

24

D55767

CYLINDER

STARTING FLUID - 955 cc cylinder

1шт.

25

D55949

BRACKET

CLAMP - cylinder

1шт.

26

D55950

CABLE

- cold start control, 50" (1270 mm) long

1шт.

27

222-650

SLEEVE,1/8" Tube, Comp

Brass, Control cable to^.text0^valve lever 1/8" Tube, Comp

1шт.

28

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

29

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.
