(014) - A139086 AIR CLEANER

Запчасти Case 586D (014) - A139086 AIR CLEANER (10) - ENGINE

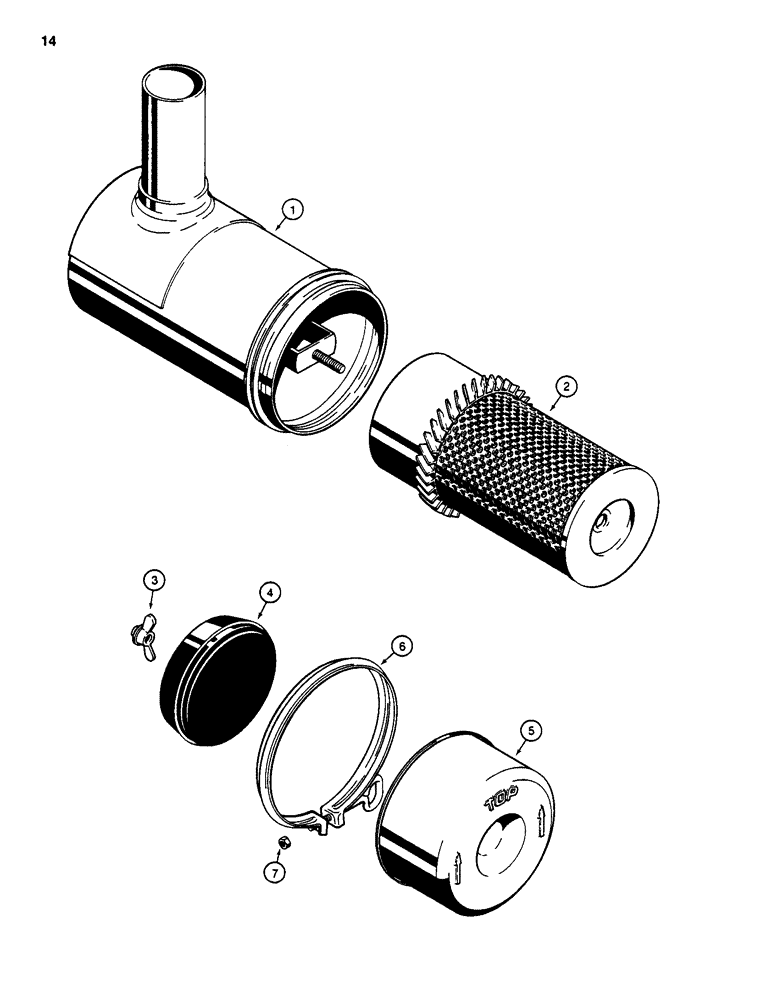

Схема запчастей Case 586D - (014) - A139086 AIR CLEANER (10) - ENGINE
3
1
5
7
2
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A139086

AIR CLEANER

ASSEMBLY - engine, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

A42274

AIR FILTER

ELEMENT - air cleaner

1шт.

3

D78354

WING NUT

WING NUT - element

1шт.

4

F22312

BAFFLE

- rubber

1шт.

5

F91760

CUP

DUST CUP - access, air cleaner

1шт.

6

F84999

CLAMP,168.28mm

ASSEMBLY - cup, Includes: Ref. 7

1шт.

7

25-224

SQUARE NUT,Sq, 1/4"-20

- square, 1/4" - 20 NC, can be used to replace caged nut

1шт.
