Запчасти Case 586D (012) - AIR CLEANER AND AIR INTAKE PARTS (10) - ENGINE

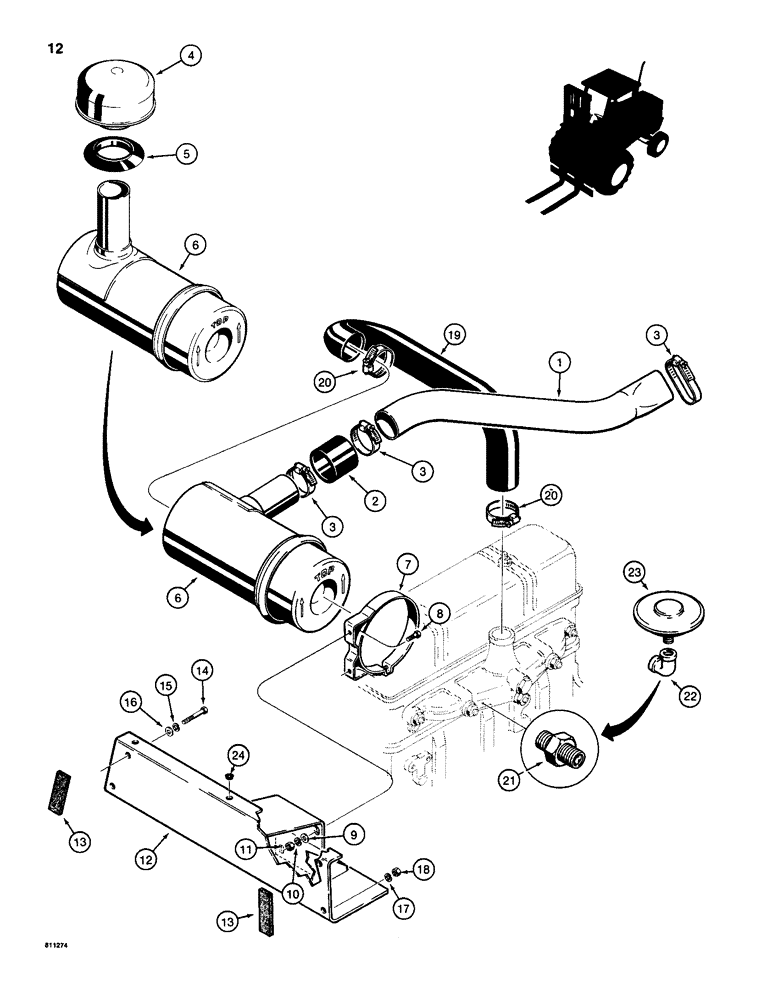

Схема запчастей Case 586D - (012) - AIR CLEANER AND AIR INTAKE PARTS (10) - ENGINE
15
3
1
17
23
20
13
10
14
9
5
22
21
7
20
6
8
3
19
24
13
6
2
12
11
3
4
18
16

Артикул

Название

Примечание

Количество

1

D91427

TUBE

- horizontal, air cleaner intake, increased noise control, if used, see Ref. 4

1шт.

2

73149

HOSE

- 2-1/2" (64 mm) ID x 2-1/2" (64 mm) long, horizontal, Start Serial: tube

1шт.

air cleaner, increased noise control, if used

1шт.

3

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - horizontal tube and hose, if used

3шт.

4

A61276

AIR CLEANER

CAP - vertical air cleaner intake, if used, see Ref. 1

1шт.

5

D75362

RING

GROMMET - vertical intake air cleaner, if used

1шт.

6

A139086

AIR CLEANER

- engine, parts list Figure 14

1шт.

7

L11247

BAND

- air cleaner mounting

2шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

12

D92457

BRACKET

- air cleaner mounting

1шт.

13

REF

INSTRUCTION

PAD - foam seal, 2-3/4" (70 mm) long, cut from L35741 bulk roll

2шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

2шт.

19

D83487

INTAKE AIR HOSE,57.15 mm ID x 285.00 mm, SAE J20, SAE 20R4 CLASS D2

- Air Cleaner to Manifold 57.15 mm ID x 285.00 mm, SAE J20, SAE 20R4 CLASS D2

1шт.

20

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, hose

2шт.

21

D36264

FITTING

AND FILTER ASSEMBLY - air restriction indicator

1шт.

22

221-374

ELBOW,90 Degree, 1/8" NPT

- 90 degree, 1/8" NPT

1шт.

23

A154782

SWITCH

SENDER - air filter restriction indicator

1шт.

24

L60224

BUMPER

- rubber, for hood

3шт.

L35741

FOAM

SEAL - bulk, 1" (25 mm) x 1" (25 mm) x 50 ft. (15.2 m) long

1шт.
