Запчасти Case 586D (010) - RADIATOR, FAN, AND MOUNTING PARTS (10) - ENGINE

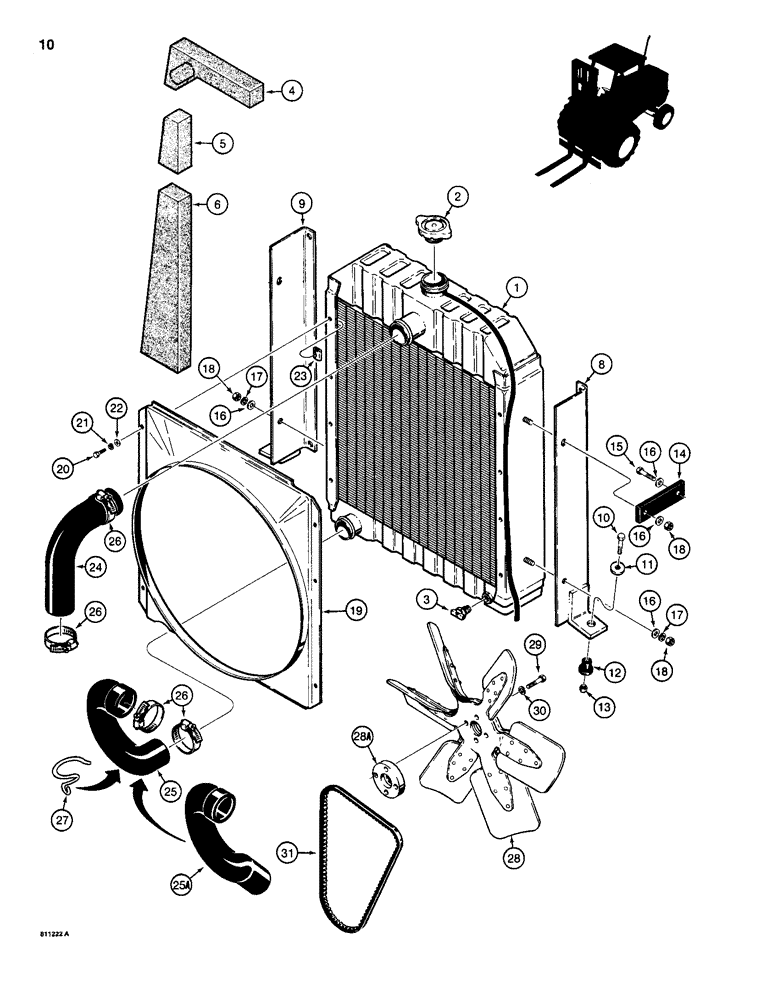

Схема запчастей Case 586D - (010) - RADIATOR, FAN, AND MOUNTING PARTS (10) - ENGINE
13
31
16
16
1
24
11
29
22
9
20
5
28
26
17
18
12
16
2
18
3
15
10
18
26
17
25a
19
25
23
21
8
30
4
26
6
16
28a
27
14

Артикул

Название

Примечание

Количество

1

D81055

RADIATOR

- engine cooling

1шт.

2

F23120

CAP

- radiator

1шт.

3

217-103

COCK, DRAIN

VALVE - drain

1шт.

4

REF

INSTRUCTION

BAFFLE - radiator, top, cut from D92228, base size is 3-15/16" (100_mm) x

1шт.

mm)9-5/8" (245)

2шт.

5

REF

INSTRUCTION

BAFFLE - radiator, upper, cut from D92228, base size is 2-1/8" (55 mm) x

1шт.

5-1/8" (130)

2шт.

6

REF

INSTRUCTION

BAFFLE - radiator, lower, cut from D92228, base size is 4-1/8" (105_mm) x

1шт.

mm)16-3/4" (425)

2шт.

7

RESERVED

1шт.

8

D93807

SUPPORT

- radiator, left-hand

1шт.

9

D93808

SUPPORT

- radiator, right-hand

1шт.

10

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - vibration, rubber

2шт.

13

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

14

D73500

STRAP

- radiator mounting, side

2шт.

15

113-2201

BOLT,Locking, 3/8" - 16 x 1-1/2", Gr 5

- hex head, self-locking, 3/8" - 16 NC x 1-1/2"

2шт.

16

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

19

D81056

SHROUD ASSY.

SHROUD - radiator, plastic

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

22

195-102

WASHER,1/4"

- flat, , plated 1/4"

6шт.

23

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- J-type, 1/4" - 20 NC

6шт.

24

D81057

RADIATOR HOSE,50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

Upper 50.80 mm ID x 192.00 mm, SAE J20, SAE 20R4 CLASS D2

1шт.

25

D81058

HOSE

- radiator, lower, used with Ref. 27

1шт.

25a

D122895

RADIATOR HOSE,44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

- Lower, Does not use Ref. 27 44.50 mm ID, 50.80 mm ID x 300 mm, SAE 20R4 Class D2 per SAE J20

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

27

D82192

SUPPORT

- lower radiator hose, used with Ref. 25 only

1шт.

28

D93696

FAN

- suction

1шт.

28a

D93496

SPACER

- fan

1шт.

29

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

29

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

31

D73446

V-BELT,0.50" W x 51.50" L

Alternator and Fan 0.50" W x 51.50" L

1шт.

D92228

BAFFLE

bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2", used for Ref. 4, 5 and 6

1шт.

Use 1-1/2" fan bolts when the fan has a double center plate, and 1-1/4" fan bolts when the fan has a single center plate.

1шт.

(38 mm), use to cut Refs. 4 - 6, not shown

1шт.

345-44

ADHESIVE

- spray can, 23 oz., for attaching foam pads to metal surfaces, not shown

1шт.

Выбрано товаров: 43
