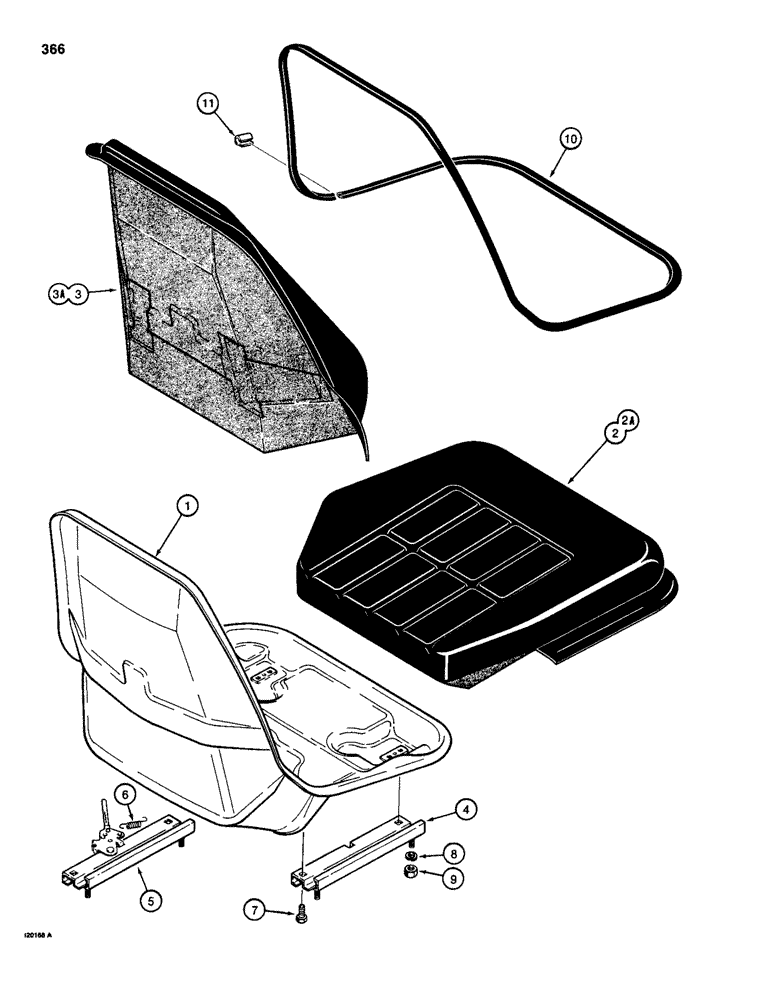

Запчасти Case 586D (366) - D122157 AND D124515 SEATS (90) - PLATFORM, CAB, BODYWORK AND DECALS

D122157

SEAT ASSEMBLY - operators, standard, black, order D76157 seat for service, Includes: Ref. 1 - 11

1шт.

D124515

SEAT ASSY.

SEAT ASSEMBLY - operators, standard, brown, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N7675

CUSHION

- seat, black, if used, includes N7802 clip kit, see below

1шт.

2a

N8462

CUSHION

- seat, brown, if used, includes N7802 clip kit, see below

1шт.

3

N7674

BACKREST

CUSHION - backrest, black, if used, includes N7802 clip kit, see below

1шт.

3a

N8461

CUSHION

- backrest, brown, if used, includes N7802 clip kit, see below

1шт.

4

D56887

SEAT

SLIDE - seat, right-hand

1шт.

5

D56888

ADJUSTER

SLIDE - seat, left-hand, adjustment side, Includes: Ref. 6

1шт.

6

L35503

SPRING

- adjustment lever

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

N14614

GASKET

RETAINER - edging strip, Serial Range: cushion-shell

1шт.

11

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

Other seats shown on Figures 365 and 369.

1шт.

345-44

ADHESIVE

- pad retaining, in a can, 23 fl. ounces (680 ml), not shown

1шт.

N7802

CLIP

KIT - clip, includes Ref. 11 clip above plus 6 additional narrow clips

1шт.

Other seats shown on Figures 365 and 369.

1шт.
