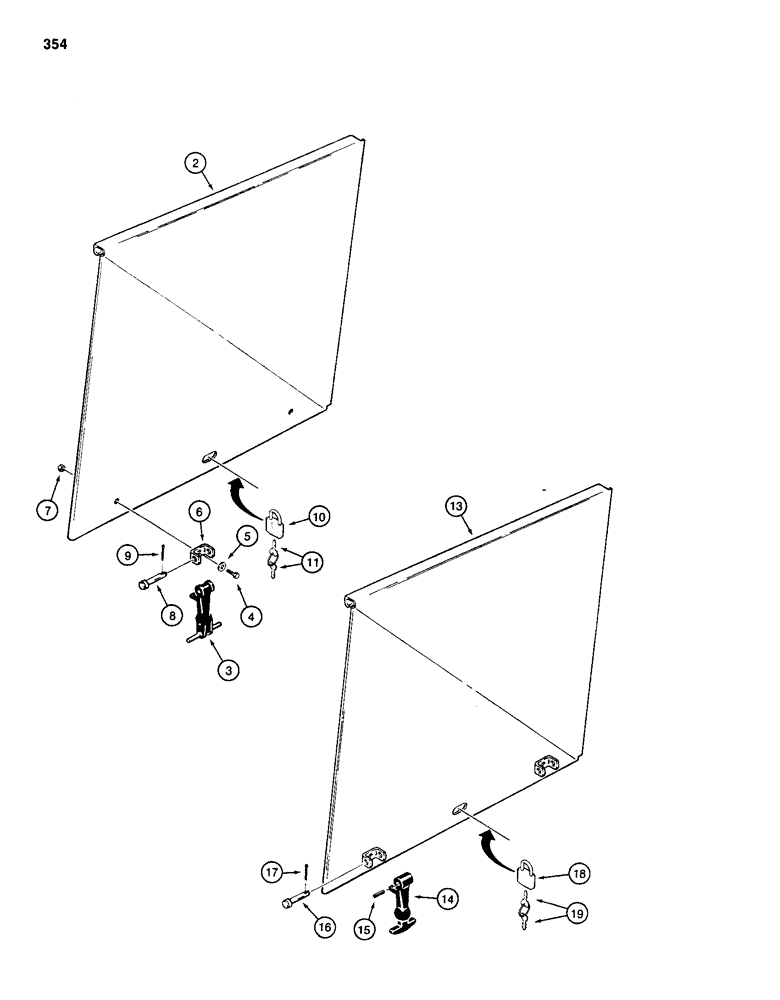

Запчасти Case 586D (354) - ENGINE SIDE PANELS, MODELS WITH BOLT-ON BRACKET, MODELS WITH WELDED BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D88932

PANEL

- side, engine, right-hand, not shown, no longer used, for service order D122113 panel (Ref. 12), (2) H54890 pins (Ref. 16), (2) 132-328 cotter pins (Ref. 17), & (2) 138-55 roll pins, models with bolt-on bracket (Ref.15), models with bolt-on bracket

1шт.

2

D88931

PANEL

- side, engine, left-hand, no longer used, for service order D122138 panel (Ref.13), (2) H54890 pins (Ref. 16), (2) 132-328 cotter, models with bolt-on bracketpins (Ref. 17), and (2) 138-55 roll pins (Ref. 15), models with bolt-on bracket

1шт.

3

L47157

HOOK

- side panel retaining, models with bolt-on bracket

4шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Models with bolt-on bracket Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, models with bolt-on bracket

4шт.

6

L47159

BRACKET

- anchor, side panel, models with bolt-on bracket

4шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, models with bolt-onbracket

4шт.

8

141-66

CLEVIS PIN,5/16" x 1 13/16"

- 5/16", special length, plated, hook mounting, models with bolt-on bracket

4шт.

9

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), , Models with bolt-on bracket 3/32" x 3/4"

4шт.

10

D93753

PADLOCK

- engine side panels, if used, models with bolt-on bracket, Includes: Ref. 11

2шт.

11

R29555

KEY

- for Master padlock only, models with bolt-on bracket

2шт.

11

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, models with bolt-on bracket

2шт.

12

D122113

PANEL

- side, engine, left-hand, not shown, models with welded bracket

1шт.

13

D122138

PANEL

- side, engine, righthand, models with welded bracket

1шт.

14

D121323

LATCH ASSY.

HOOK - side panel, models with welded bracket

4шт.

15

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Hook bushing, models with welded bracket 1/8" x 5/8", Slotted

4шт.

16

H54890

CLEVIS PIN,4.76mm OD x 46.04mm L

PIN - hook mounting, models with welded bracket

4шт.

17

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), , Models with welded bracket 1/16" x 1/2"

4шт.

18

D93753

PADLOCK

- engine side panels, if used, models with welded bracket, Includes: Ref. 19

2шт.

19

R29555

KEY

- for Master padlock only, models with welded bracket

2шт.

19

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, models with welded bracket

2шт.
