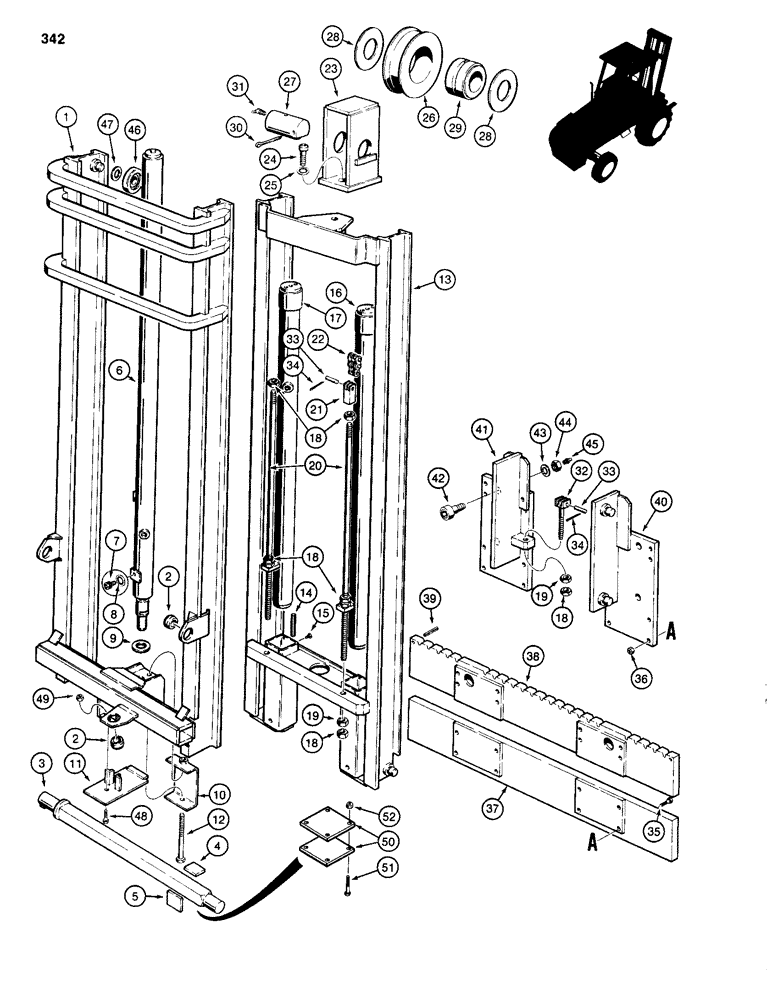

Запчасти Case 586D (342) - 14 FOOT (4.3 M) FREE LIFT MAST FOR 586D (83) - TELESCOPIC SINGLE ARM

D121922

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Refs. 1 - 52 and Ref. 9 - 24 on Figure 273

1шт.

1

D82903

FUNNEL

FRAME - outer, Includes: Ref. 2

1шт.

2

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

Bearing - Self-aligning

3шт.

3

D75934

BAR

- trunnion

1шт.

4

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

5

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.

6

N7650

CYLINDER

- lift, center, see parts list Figure 298

1шт.

7

61-66

HEX SOC SCREW,3/8"-16 x 3/8"

BOLT - hex socket head, 3/8" - 16 NC x 3/8"

1шт.

8

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

9

D82877

WASHER

- cylinder

1шт.

10

D82881

COVER

GUARD - hydraulic

1шт.

11

D83063

COVER

- bottom

1шт.

12

113-791

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex head, 3/4" - 10 NC x 8-1/2", plated

1шт.

13

D82905

FRAME

- inner

1шт.

14

D82883

HYDRAULIC HOSE

HOSE - rubber, insulator

8шт.

15

187-1331

SCREW - pan head, slotted, self tapping, No. 12 - 14 x 5/8", plated

8шт.

16

N7648

CYLINDER ASSY.

CYLINDER - lift, right-hand, see parts list Figure 298

1шт.

17

N7649

CYLINDER

- lift, left-hand, see parts list Figure 298

1шт.

18

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4" - 16 NF

10шт.

19

D82886

NUT

- special, 3/4" - 16 NF

4шт.

20

D82908

CONNECTOR, ELEC

ROD - connecting

2шт.

21

D82888

ANCHOR

MOUNT - chain

2шт.

22

D82909

CHAIN (AG)

CHAIN - lift, 65 links

2шт.

23

D82890

FRAME

- sheave

2шт.

24

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/2"

4шт.

25

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

26

D82891

SHEAVE

- chain

2шт.

27

D82892

PIN

- sheave

2шт.

28

D36582

WASHER

THRUST WASHER - bearing

4шт.

29

D82893

ROLLER BEARING,44.45mm ID x 76.2mm OD x 44.7mm W

BEARING - sheave

2шт.

30

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

31

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 65 degree, 3/16" drive

2шт.

32

D82894

ANCHOR

MOUNT - chain

2шт.

33

D82895

PIN

- chain mount

4шт.

34

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

8шт.

35

61-840

HEX SOC SCREW,1/2"-13 x 2 1/2"

BOLT - hex socket head, 1/2" - 13 NC x 2-1/2"

16шт.

36

129-145

JAM NUT,Jam, 1/2"-13, G5

12шт.

37

D82896

PLATE

BACK PLATE - lower

1шт.

38

D82897

PLATE

BACK PLATE - upper

1шт.

39

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, 7/16" x 2", Slotted

2шт.

40

D82898

SHEET

CARRIAGE - right-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

41

D82899

SHEET

CARRIAGE - left-hand

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D82900

ROLLER

BEARING - carriage

4шт.

43

195-49

WASHER

- flat, 7/8"

4шт.

44

131-465

LOCK NUT,7/8"-14, G8

NUT - hex, self-locking, 7/8" - 14 NF

4шт.

45

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive

4шт.

46

N7679

BEARING, ROLLER,1.378" ID x 4" OD x 1.13"

ROLLER BEARING - frames

8шт.

47

D82902

SHIM,.059" Thk

Washer .059" Thk

8шт.

48

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

49

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

50

D88745

LARGE PLATE

PLATE - trunnion bar ends

4шт.

51

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

8шт.

52

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.
