Запчасти Case 586D (334) - 14-1/4 FOOT (4.3 M) MAST FOR 586D (83) - TELESCOPIC SINGLE ARM

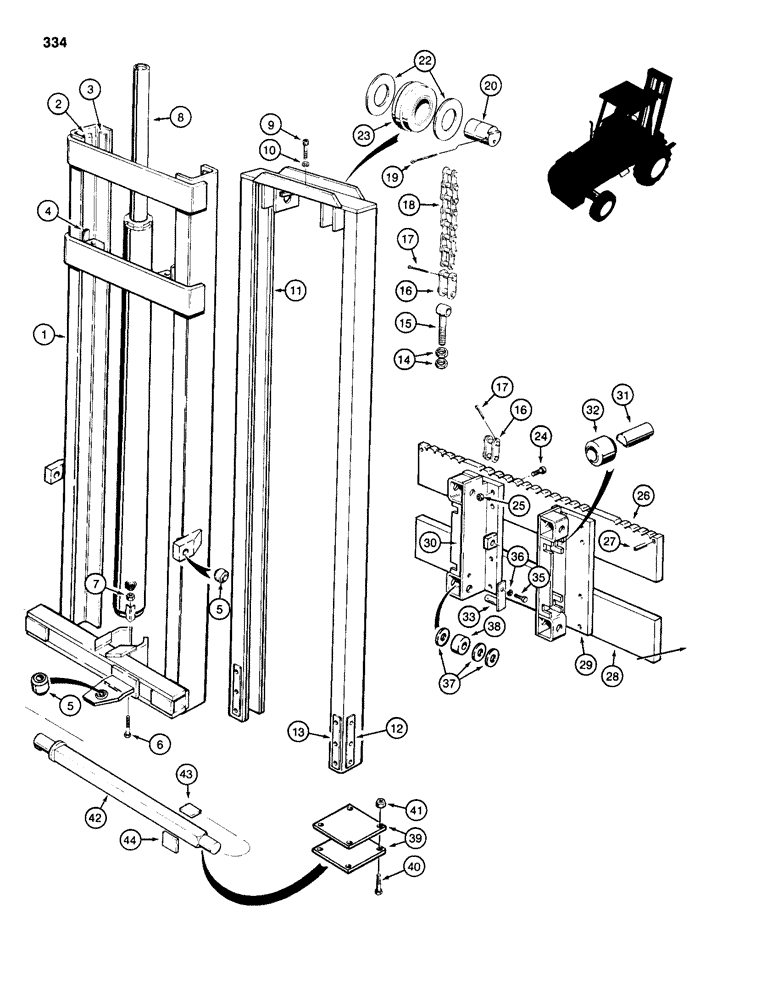

Схема запчастей Case 586D - (334) - 14-1/4 FOOT (4.3 M) MAST FOR 586D (83) - TELESCOPIC SINGLE ARM
29
37
6
16
5
18
14
5
20
43
33
16
36
38
41
22
39
4
31
40
23
2
44
12
42
9
32
3
19
15
10
7
26
17
28
30
35
11
27
25
1
8
17
13
24

Артикул

Название

Примечание

Количество

D90994

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 44

1шт.

1

D75941

CHANNEL

FRAME - outer, Includes: Ref. 2 - 5

1шт.

2

D32555

PAD

WEAR PLATE - 1/8" (3 mm) x 5" (127 mm)

2шт.

3

D27365

PAD

WEAR PLATE - 3/16" (5 mm) x 10" (254 mm)

4шт.

4

D47895

WEAR PAD

WEAR PLATE - 3/16" (5 mm) x 4-1/2" (114 mm)

2шт.

5

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

BEARING - self-aligning

3шт.

6

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex head, 7/16" - 14 NC x 6", plated

1шт.

7

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

N7643

CYLINDER

- lift, parts list figure 296

1шт.

9

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket head, self-locking, 1/2" - 20 NF x 2"

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

D39481

CHANNEL

FRAME - inner, Includes: Ref. 12 and 13

1шт.

12

60972

STRIP

WEAR PLATE - 1/8" (3 mm) x 11" (279 mm)

2шт.

13

D36586

PLATE

WEAR PLATE - 3/16" (5 mm) x 11" (279 mm)

4шт.

14

129-130

NUT,1"-14, G5

- hex, 1" - 14 NF, plated

4шт.

15

N6877

BOLT

- chain

2шт.

16

N6878

CHAIN LINK

LINK - connecting, lift chain, Includes: Ref. 17

4шт.

17

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

18

D39484

CHAIN (AG)

CHAIN - lift, 89 links

2шт.

19

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

20

N7324

KIT

PIN - guide wheel, service, includes grease fitting not required, Includes: Ref. 21

2шт.

21

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

22

D36582

WASHER

THRUST WASHER - wheel

4шт.

23

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - chain guide

2шт.

24

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

25

129-145

JAM NUT,Jam, 1/2"-13, G5

16шт.

26

D55415

LARGE PLATE

BACK PLATE - upper

1шт.

27

138-2050

PIN,7/16" x 2", Coiled

2шт.

28

D55416

LARGE PLATE

BACK PLATE - lower

1шт.

29

D52321

SUPPORT ASSY.

CARRIAGE - right-hand

1шт.

D52321 and D52322 carriage per print the (8) 1/2-13 mounting holes must be drilled and tapped at assembly

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

30

D52322

SUPPORT ASSY.

CARRIAGE - left-hand

1шт.

D52321 and D52322 carriage per print the (8) 1/2-13 mounting holes must be drilled and tapped at assembly

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

31

D36589

PIN,25.4mm OD x 69.85mm L

- side roller

4шт.

32

D36590

ROLLER

- side

4шт.

33

D86605

AXLE

PIN - roller, service, includes grease fitting not required, Includes: Ref. 34

4шт.

34

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

35

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

36

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

37

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

THRUST WASHER - roller

12шт.

38

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

ROLLER - load

4шт.

39

D88745

LARGE PLATE

PLATE - trunnion bar ends

4шт.

40

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

8шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

42

D75934

BAR

- trunnion

1шт.

43

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

44

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.

Выбрано товаров: 49
