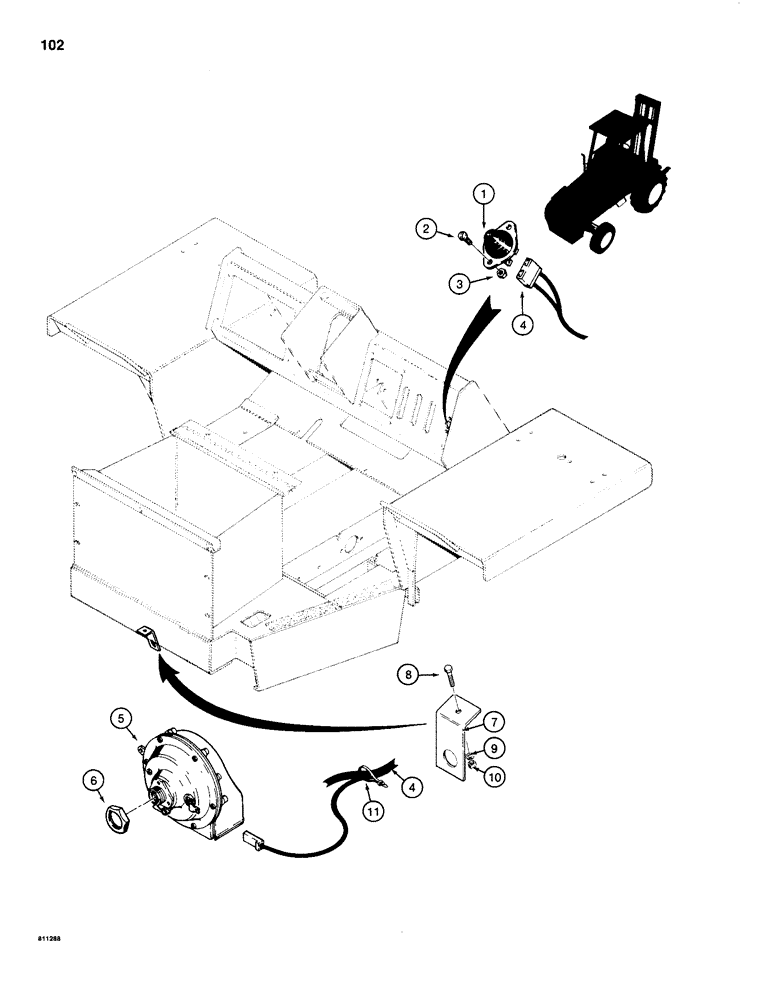

Запчасти Case 586D (102) - HORN (55) - ELECTRICAL SYSTEMS

1

D67872

SWITCH

- horn, push button type

1шт.

2

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

MACHINE SCREW - round head slotted, No. 8 - 32 NC x 1/2", plated

2шт.

3

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, plated

2шт.

4

REF

INSTRUCTION

HARNESS - main wiring, see Figures 83-87 or 95

1шт.

5

D123205

HORN

- 12 volt

1шт.

6

L30866

LOCK NUT

- hex, 7/8" - 20, horn mounting

1шт.

7

D70129

MOUNTING PARTS

BRACKET - horn mounting

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
