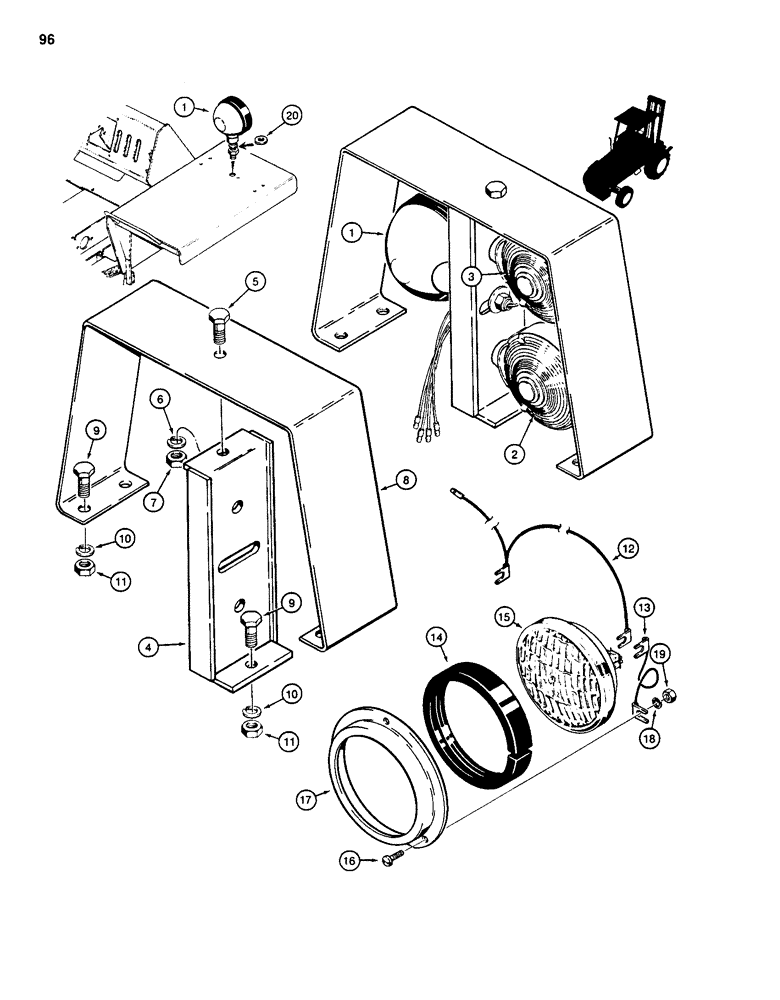

Запчасти Case 586D (096) - FRONT AND REAR LAMPS AND CONNECTIONS (55) - ELECTRICAL SYSTEMS

1

D88684

LAMP

ASSEMBLY - front, parts list Figure 100

2шт.

2

D49733

LAMP

ASSEMBLY - stop and tail, if used, parts list Figure 98

2шт.

3

D122121

LAMP,12V

ASSEMBLY - signal and flasher, if used, parts list Figure 98

2шт.

4

D58713

LARGE PLATE

BRACKET - center, lamp mounting, if used

2шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

8

D58721

BRACKET

- outer, lamp mounting, if used

2шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

12

D56401

ELECTRICAL WIRE

WIRE - rear lamps

1шт.

13

A11768

ELECTRICAL WIRE

WIRE - rear lamps, ground

2шт.

14

D93241

RETAINER

- rubber, rear lamp

2шт.

15

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406

2шт.

16

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

6шт.

17

D57288

RING

- metal, lamp retainer

2шт.

18

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

6шт.

20

95-8

WASHER,1/2"

flat 1/2"

2шт.
