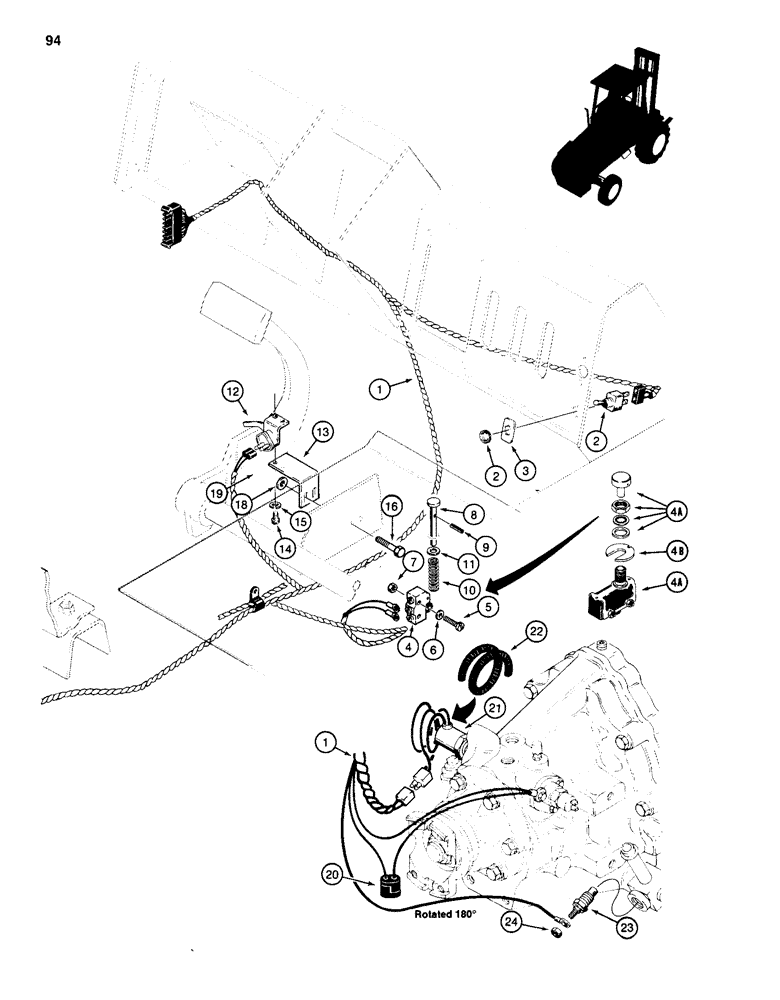

Запчасти Case 586D (094) - POWER SHUTTLE ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, includes clutch cutout circuit, see Figures 85 and 87 for harness

1шт.

2

D67251

SWITCH

- clutch cutout, dash mounted

1шт.

3

D73929

PLATE

- switch

1шт.

4

D40921

SWITCH

- clutch cutout, floor mounted, if used

1шт.

4a

D124618

SWITCH

- clutch cutout, floor mounted, if used

1шт.

4b

D126116

BRACKET

WASHER - special, used with D124618 switch only

1шт.

5

169-165

MACHINE SCREW - Fillister head, No. 6 - 32 NC x 1-1/8", plated, if used

2шт.

6

195-507

WASHER,#6

- flat, No. 6, plated, if used

2шт.

7

193-1003

NUT,Keps, w/LW,#6-32

AND LOCK WASHER - No. 6 - 32 NC, plated, if used

2шт.

8

D84327

ROD

- switch actuating, used with D40921 switch

1шт.

9

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used with D40921 switch 1/8" x 1", Slotted

1шт.

10

T34088

SPRING

- rod return, used with D40921 switch

1шт.

11

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

1шт.

12

A33977

SWITCH

- clutch cutout, brake pedal

1шт.

13

D77685

BRACKET

- brake switch

1шт.

14

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/8"

2шт.

15

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

16

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

RESERVED

1шт.

18

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

2шт.

20

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

21

D134742

SOLENOID

- clutch cutout, at shuttle

1шт.

22

D88053

SLEEVE

- solenoid wires

1шт.

23

D65446

SENDER UNIT

SENDER - shuttle transmission temperature

1шт.

24

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.
