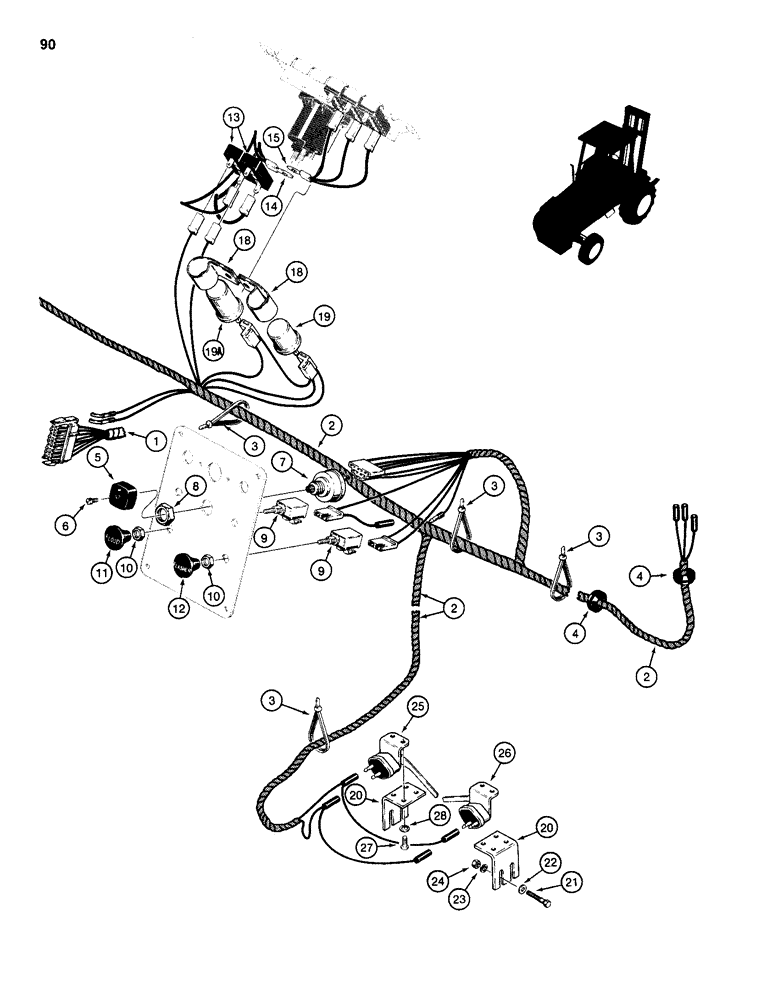

Запчасти Case 586D (090) - ELECTRICAL CIRCUIT, FLASHER HARNESS AND CONTROLS (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, see Figures 85 and 87 for main harness and related parts

1шт.

2

D76781

HARNESS

- front lamps with stop and flasher lamps

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

D51643

GROMMET

- wire harness

4шт.

5

A20465

KNOB

- turn signal switch

1шт.

6

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

7

D52008

SWITCH

- turn signal

1шт.

8

A20467

NUT

- turn signal switch

1шт.

9

D74330

SWITCH

- flood lamp and flasher lamp, Includes: Ref. 10

2шт.

10

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

11

D95783

KNOB

- flood lamp

1шт.

12

D95782

KNOB

- flasher lamp

1шт.

13

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

2шт.

14

D88040

HARNESS

WIRE - jumper, double circuit, Serial Range: breaker-solenoid

1шт.

15

D75225

ELECTRICAL WIRE

WIRE - jumper, triple, circuit, Serial Range: breaker-solenoid

1шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

18

A34868

CLAMP

BRACKET - flasher mounting

2шт.

19

A65550

FLASHER UNIT

FLASHER - 12 volt, turn

1шт.

19a

D133000

LIGHT, WARNING

FLASHER - 12 volt, hazard

1шт.

20

D77905

BRACKET

- brake pedal switch mounting

2шт.

21

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

22

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

25

A33976

SWITCH

- stop lamp, left-hand

1шт.

26

A33977

SWITCH

- stop lamp, right-hand

1шт.

27

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/8"

4шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.
