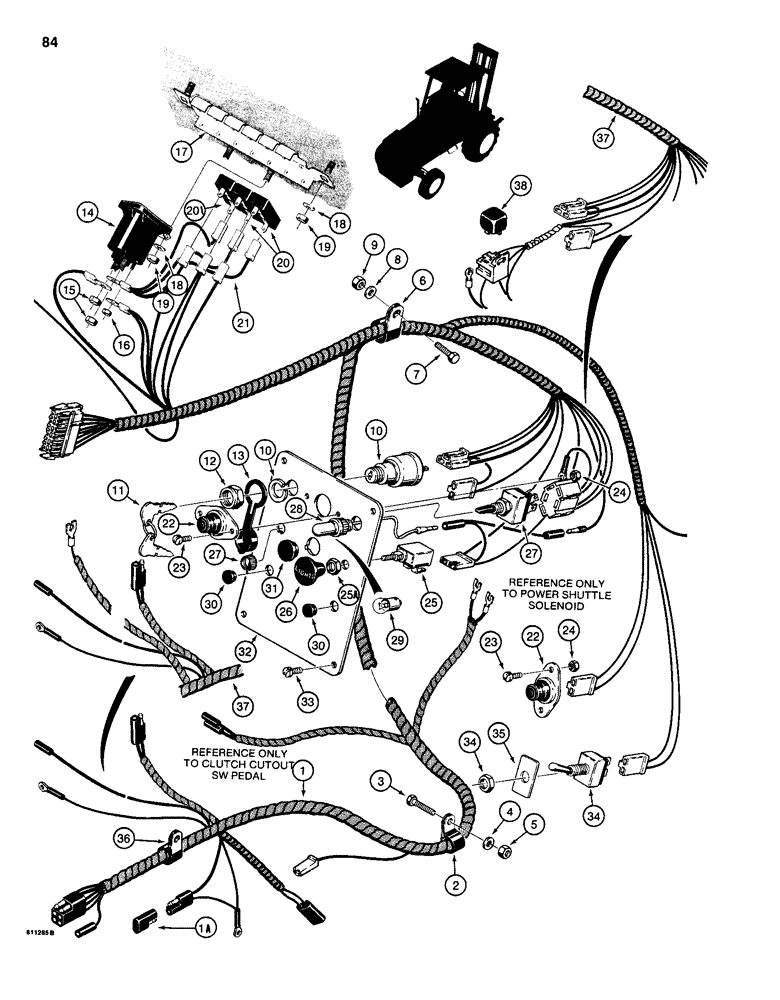

Запчасти Case 586D (084) - ELECTRICAL CIRCUIT, MAIN HARNESS AND INSTRUMENT PANEL, MODELS WITHOUT FLASHER LAMPS (55) - ELECTRICAL SYSTEMS

1

D120900

HARNESS

- main, also see Figures 83 and 95, harness without a connector for the neutral start switch relay, no longer available, for service order D102013 kit, Refs. 37-41 on Figure 84, Includes: Ref. 2

1шт.

For models prior to tractor PIN 17019351, using D120900 main harness without a connector for a neutral start switch relay, see Figure 89 for the conversion kit for the redesigned neutral start switch relay circuit. The relay has been added for longer service life of the neutral start switch.

1шт.

1a

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, under frame

3шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

4

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, instrument panel area

2шт.

7

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

D85872

SWITCH

ASSEMBLY - key, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

SWITCH - key

1шт.

11

D36822

KEY

- switch, set of two keys

1шт.

12

N7842

NUT

- key switch

1шт.

13

N6401

PROTECTIVE COVER

COVER - dirt and moisture protection

1шт.

14

A77311

SWITCH

SOLENOID - electrical

1шт.

15

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER - 5/16" - 18 NC, plated

2шт.

16

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

17

D75355

BRACKET

- circuit breakers

1шт.

18

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

19

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

4шт.

20

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

2шт.

20a

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

21

D75225

ELECTRICAL WIRE

WIRE ASSEMBLY - solenoid to circuit breaker

1шт.

22

D67872

SWITCH

- push button starter and horn

2шт.

23

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

MACHINE SCREW - round head slotted, No. 8 - 32 NC x 1/2", plated

4шт.

24

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, plated

4шт.

25

D74330

SWITCH

- lamp, Includes: Ref. 25A

1шт.

25a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

26

D95781

BUTTON

KNOB - lamp switch

1шт.

27

D75360

SWITCH

- test, air cleaner and hydraulic oil filter

1шт.

L105210

LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

SOCKET ASSEMBLY - lamp

1шт.

29

A22349

BULB

- lamp, No. 9234

1шт.

30

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

2шт.

31

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16", if used

1шт.

32

D73388

COVER

PLATE - switch mounting

1шт.

33

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

4шт.

34

D67251

SWITCH

- clutch cutout, see Figure 89 for clutch cutout solenoid, connections, and controls

1шт.

35

D73929

PLATE

- clutch cutout switch

1шт.

36

49838

CLAMP

- harness, use existing hydraulic tube clamp hardware

2шт.

D102013

KIT

- service, harness, includes instruction sheet, Includes: Ref. 37 - 41

1шт.

37

D133057

HARNESS

- main, with connector for neutral start switch relay

1шт.

38

D128310

RELAY

- 30 amperes, to protect neutral start switch

1шт.

D128310 relay is marked 40 amp on the relay this is the Resistance rating. The Inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

39

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

MACHINE SCREW - pan head slotted, No. 8 - 32 NC x 1/2", not shown, replaces existing circuit breaker lower mounting hardware

1шт.

replaces existing circuit breaker lower mounting hardware

1шт.

40

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

AND LOCK WASHER - No. 8 - 32 NC, not shown, replaces existing circuit breaker lower mounting hardware

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

TIE STRAP - wire, not shown

1шт.
