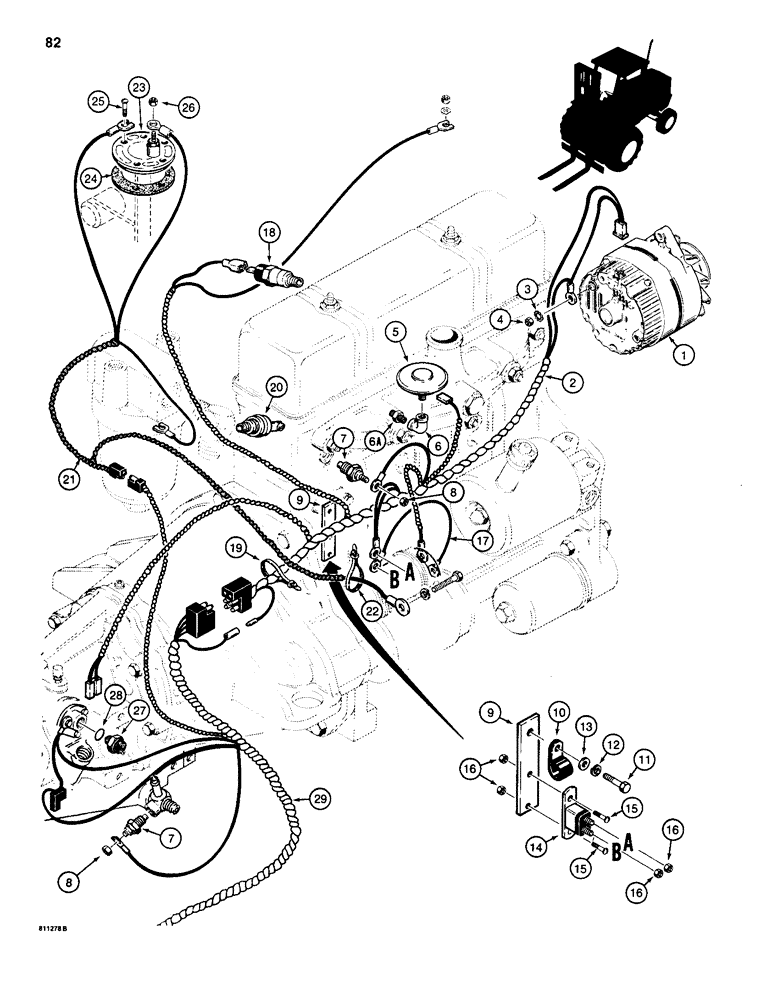

Запчасти Case 586D (082) - ELECTRICAL CIRCUIT, ALTERNATOR, ENGINE HARNESS AND CONNECTIONS (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - for correct assembly and components see Figures 59-67, mounting parts Figure 79

1шт.

2

D120899

HARNESS

- engine; The engine harness grounds to the starter on models without a neutral start switch relay in the main harness; on models with a neutral start switch relay in the main harness, the engine harness starter ground has been moved to the lower

1шт.

3

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

4

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

5

A154782

SWITCH

SENDER - air filter restriction

1шт.

6

221-374

ELBOW,90 Degree, 1/8" NPT

- 90 degree, 18" NPT

1шт.

6a

D36264

FITTING

AND FILTER ASSEMBLY - air restriction indicator

1шт.

7

D65446

SENDER UNIT

SENDER - engine and shuttle transmission temperature

2шт.

8

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

2шт.

9

D74343

PLATE

- circuit breaker mounting

1шт.

10

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- engine harness, on circuit breaker mounting plate

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

13

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

14

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes

1шт.

15

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2"

2шт.

16

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

4шт.

17

D79476

ELECTRICAL WIRE

WIRE - circuit breaker to starter solenoid

1шт.

18

A162297

SWITCH

SENDER - oil pressure

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

20

D87439

SWITCH

SENDER - oil filter restriction, if used

1шт.

21

D120307

HARNESS

- fuel and oil filter senders

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

D83480

TRANSMITTER

SENDER - fuel level

1шт.

24

A11822

GASKET

- fuel level sender

1шт.

25

D75465

SCREW,#10 - 32 x 5/8"

- special sealing

5шт.

26

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

1шт.

27

S113435

SWITCH

- neutral start, Includes: Ref. 28

1шт.

28

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, switch

1шт.

29

REF

INSTRUCTION

HARNESS - main, see Figures 85, 87, and 95

1шт.
