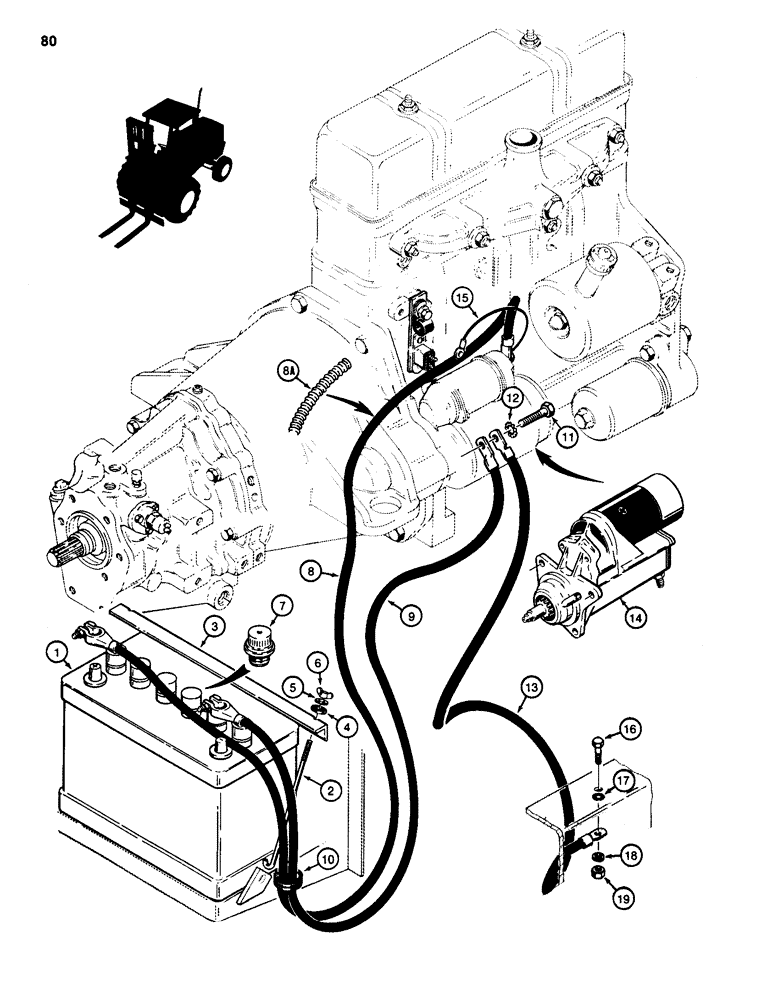

Запчасти Case 586D (080) - ELECTRICAL CIRCUIT, BATTERY AND CABLES TO STARTER (55) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, service replacement, maintenance free, replaces battery which used (6) A60553 nonspill caps

1шт.

2

D49723

BOLT

- J-type, battery retaining, 3/8" - 16 NC

2шт.

3

D49724

ANGLE

BRACKET - battery retaining

1шт.

4

G46867

GROMMET

- battery retaining bolt

2шт.

5

G49400

WASHER

- flat, 3/8", special

2шт.

6

129-410

WING NUT,3/8"-16

- 3/8" - 16 NC, plated

2шт.

7

A60553

CAP

- battery, nonspill, if used

6шт.

8

D71935

CABLE

- battery, positive

1шт.

8a

D121606

LOOM

SLEEVE - positive cable, 67" long, order D99461 sleeve and cut to required length

1шт.

9

D71936

CABLE

- battery, negative

1шт.

10

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- battery cables

1шт.

11

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

13

F10142

CABLE

- ground

1шт.

14

REF

INSTRUCTION

STARTER - engine, for correct assembly and components see Figures 69-77, mounting parts on Figure 79

1шт.

15

D79476

ELECTRICAL WIRE

WIRE - jumper, circuit breaker to starter solenoid

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

D99461

LOOM

SLEEVE - bulk, 80" (2032 mm) long

1шт.
