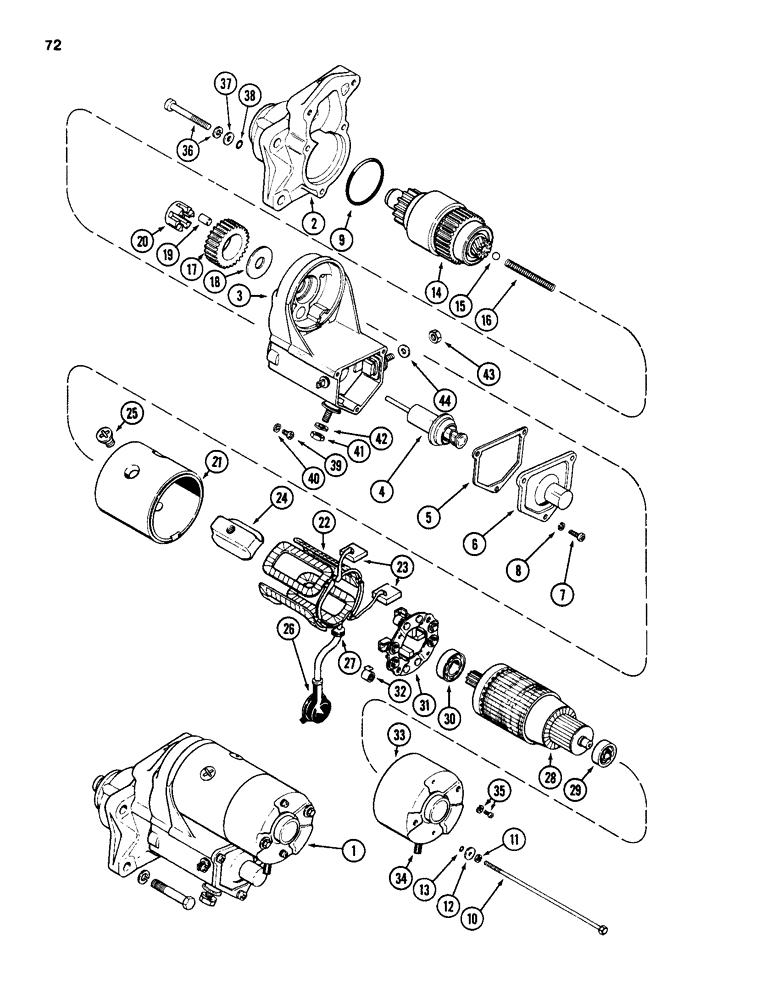

Запчасти Case 586D (072) - R39341 STARTER (55) - ELECTRICAL SYSTEMS

1

R39341

STARTING MOTOR

STARTER ASSEMBLY - new (Nippondenso No. 028000-5880), Includes: Ref. 1 - 44

1шт.

1

A47496

STARTER MOTOR

STARTER ASSEMBLY - remanufactured, Includes: Ref. 1 - 44

1шт.

1

A47497

CORE-STARTER

RETURN NUMBER - starter (Use this number to return starter core for credit)

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

1

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

1

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

A47227

HOUSING

HOUSING - drive end

1шт.

3

A47228

SWITCH

SWITCH ASSEMBLY - magnetic, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING -, Serial Range: switch-housing

1шт.

A47243

BOLT

BOLT ASSEMBLY - through, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT - through (Reference No. A47128)

1шт.

11

892-1106

LOCK WASHER,M6

LOCK WASHER, (1/4") M6

1шт.

12

195-516

WASHER,#12

WASHER - flat, 1/4 x 9/16 x 1/16 inch (6 x 14 x 1 mm)

1шт.

13

A47127

O-RING

O-RING - bolt seal

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY - drive

1шт.

15

211-10

BALL

BALL - thrust, steel, 3/8 inch (10 mm) diameter

1шт.

16

A47232

SPRING

SPRING - clutch drive, 2-13/16 inch (71 mm) free length

1шт.

17

A47233

GEAR

PINION - idler

1шт.

18

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER - idler pinion bearing

6шт.

20

A47236

RETAINER

RETAINER - roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES - starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE - lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY - starter, Includes: Ref. 29 and 30

1шт.

29

A47248

BALL BEARING

BEARING - commutator end

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY - brush (Includes 2 brushes)

1шт.

32

A47249

SPRING

SPRING - tension, brush

4шт.

33

A47237

FRAME

FRAME - commutator end

1шт.

34

A47238

COVER

COVER - end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY - commutator end cover to drive end housing, Includes: Ref. 36 - 38

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT - with lock washer (Reference No. A47129)

1шт.

37

195-516

WASHER,#12

WASHER - flat, 1/4 x 9/16 x 1/16 inch (6 x 14 x 2 mm)

1шт.

38

A47130

O-RING

O-RING - bolt seal

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW - pan head, No. 8-32 x 3/8 inch

1шт.

40

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, Jam, 3/8"-16, G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER - field coil terminal

1шт.
