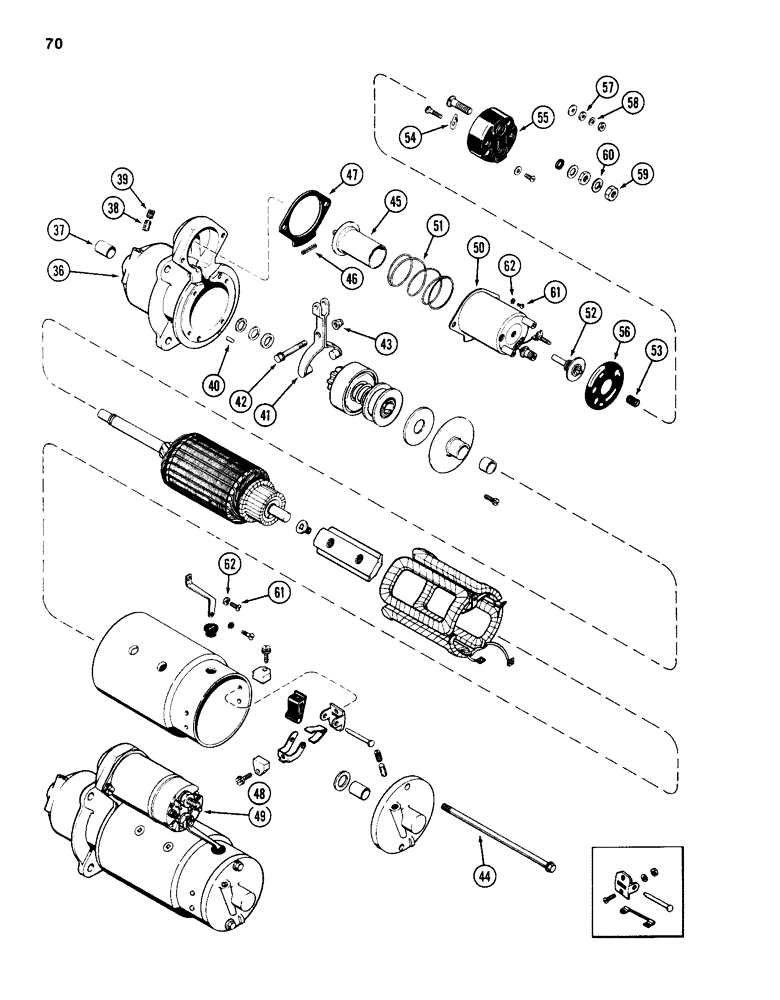

Запчасти Case 586D (070) - R29870 STARTER (55) - ELECTRICAL SYSTEMS

R29870

STARTING MOTOR

STARTER ASSEMBLY - (subs to 104202A2R), Includes: Ref. 36 - 60 and Ref. 2 - 35 on Figure 68

1шт.

The R29870 subs to 104202A2R

1шт.

36

A44495

LUG

HOUSING ASSEMBLY - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive housing

1шт.

38

R15023

WICK

- oiler

1шт.

39

221-1041

PLUG

- slotted head, oil wick hole, 1/8 inch PT

1шт.

40

R15041

PIN - locating, drive housing

1шт.

41

A40220

LEVER

- drive shift

1шт.

42

A40520

BOLT

PIVOT - shift levers

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, 5/16 inch NC

1шт.

44

A25552

BOLT

BOLT - through

2шт.

45

A40218

PLUNGER

- solenoid

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

47

A40222

BOOT

- plunger protection

1шт.

48

A47539

SOLENOID SWITCH

SOLENOID ASSEMBLY - serviced as complete assembly, Includes: Ref. 50 - 60

1шт.

49

A47539

SOLENOID SWITCH

SOLENOID ASSEMBLY - (For Service order A47539), Includes: Ref. 50 - 60

1шт.

SEE DELCO-REMY DEALER FOR PARTS ILLUSTRATED BUT NOT LISTED. REFERENCE NUMBERS IN DESCRIPTION ARE FOR CARES USE ONLY AND CAN NOT BE ORDERED SEPARATELY.

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSEMBLY - solenoid

1шт.

53

A42059

SPRING

- contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact and terminals

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET - cover to solenoid (Reference No. A42126)

1шт.

57

129-16

NUT,#8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

- round head, 1/4 NC x 1/2 inch

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.
