Запчасти Case 586D (132) - REAR WHLS & TIRES,8.00X16 TIRES 2WD,11LX16 TIRES 2WD,12X16.5 TIRES 4WD,WHL BOLTS 2WD,WHL NUTS 4WD (44) - WHEELS

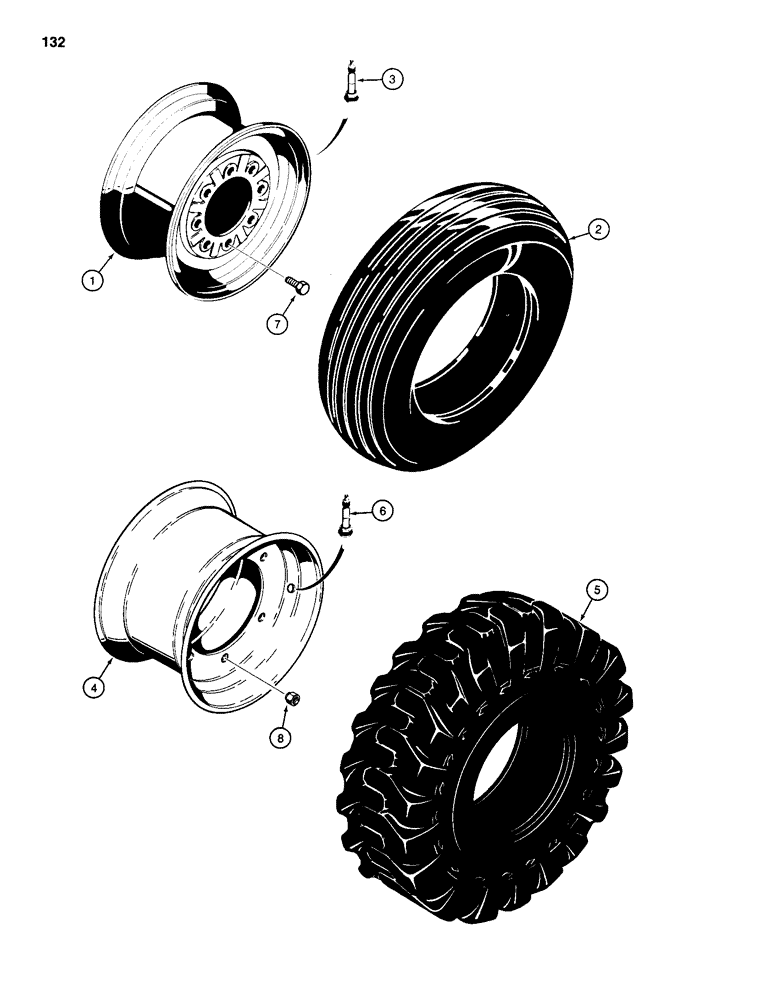

Схема запчастей Case 586D - (132) - REAR WHLS & TIRES,8.00X16 TIRES 2WD,11LX16 TIRES 2WD,12X16.5 TIRES 4WD,WHL BOLTS 2WD,WHL NUTS 4WD (44) - WHEELS
5
2
8
1
4
6
7
3

Артикул

Название

Примечание

Количество

1

A139081

WHEEL

- rim, for 8.00 x 16 tires two wheel drive models

2шт.

2

REF

INSTRUCTION

TIRE - rear, for 8.00 x 16 tires two wheel drive models

2шт.

3

A38261

VALVE

STEM - wheel, for 8.00 x 16 tires two wheel drive models

2шт.

1

A139082

WHEEL

- rim, for 11L x 16 tires two wheel drive models

2шт.

2

REF

INSTRUCTION

TIRE - rear, for 11L x 16 tires two wheel drive models

2шт.

3

A38261

VALVE

STEM - wheel, for 11L x 16 tires two wheel drive models

2шт.

4

D120271

RIM

WHEEL - rim, for 12 x 1635 tires four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE - rear, for 12 x 16.5 tires four wheel drive models

2шт.

6

A38261

VALVE

STEM - wheel, for 12 x 1635 tires four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

K965326

WHEEL NUT

- wheel retaining, wheel nuts dour wheel drive models

12шт.
