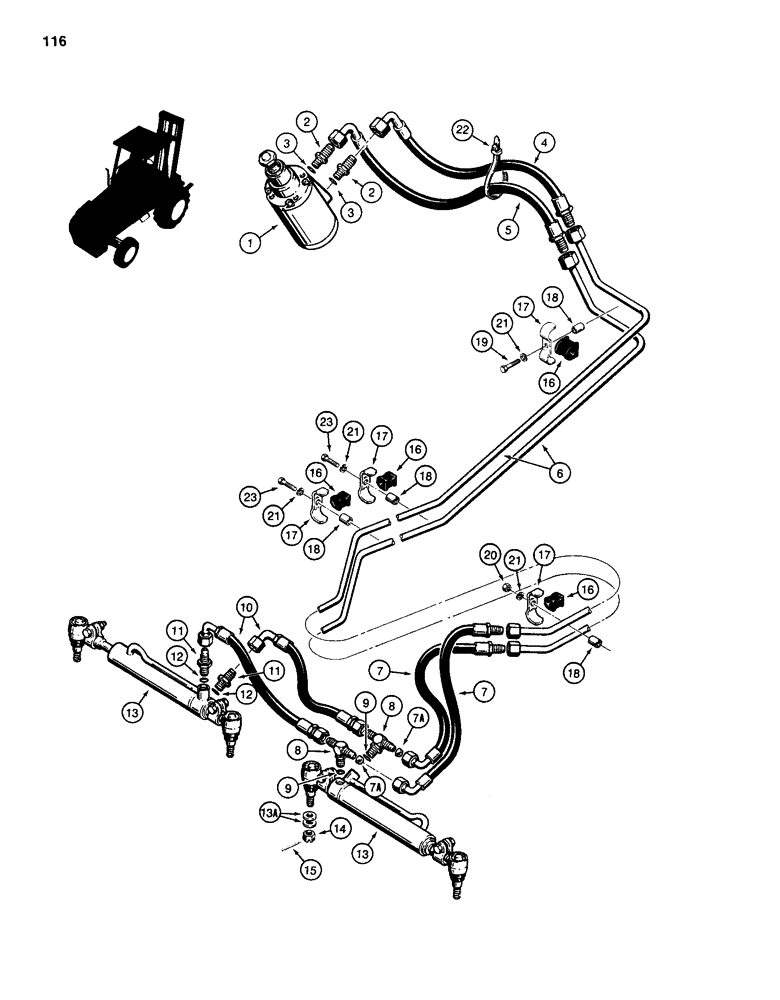

Запчасти Case 586D (116) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS, 2WD MODELS (41) - STEERING

1

D90752

PUMP

CONTROL VALVE - steering, parts list Figure 122, mounting parts on Figure 110

1шт.

2

D76050

HARDWARE

RESTRICTOR - male, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, restrictor

1шт.

4

D69142

HOSE

- special, lower left-hand control valve port

1шт.

5

D71785

HOSE

- special, upper right-hand control valve port

1шт.

6

D89043

HYD TUBE,0.5" OD x 76, 13.46" L

TUBE - control valve to cylinders

2шт.

7

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- special, to steering cylinders

2шт.

7a

D76229

RESTRICTOR

- oil flow

2шт.

8

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, Includes: Ref. 9

2шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

10

D65620

HOSE

- 16" (406 mm) long, between cylinders

2шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 12

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

13

D128454

STEERING CYLINDER

CYLINDER - steering, parts list Figure 124

2шт.

13a

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

14

129-610

SLOTTED NUT,5/8"-18, G5

4шт.

15

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

4шт.

16

D67296

GROMMET

INSULATOR - rubber, tubes

8шт.

17

D68646

CLAMP

- tube, double

4шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

4шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
