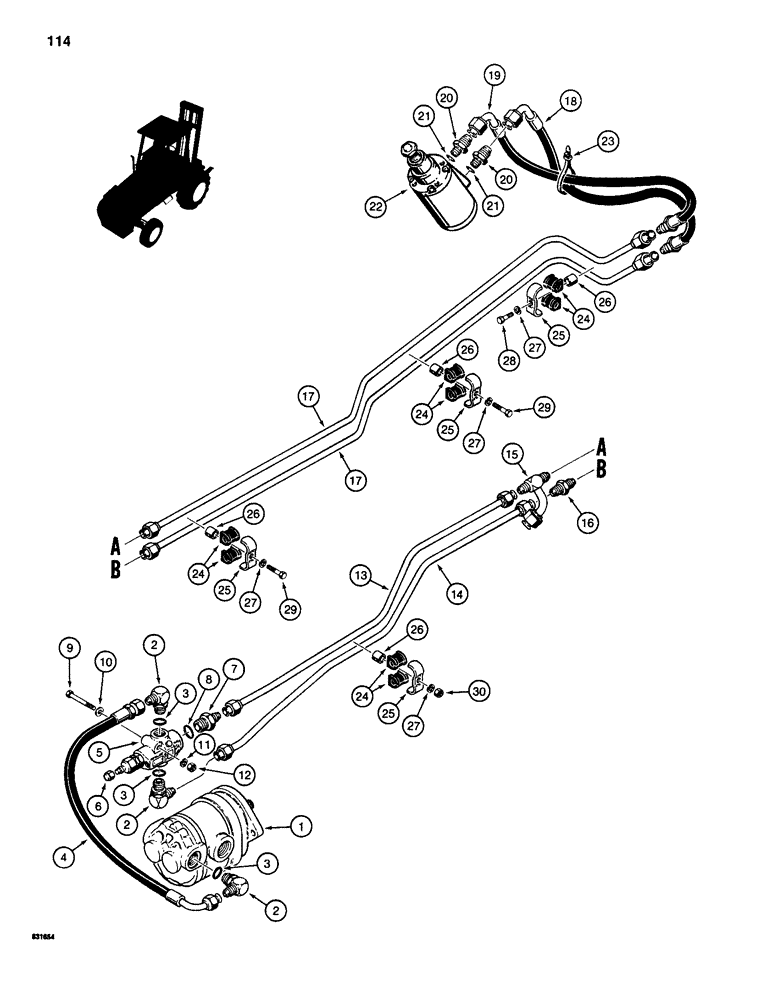

Запчасти Case 586D (114) - STEERING HYDRAULIC CIRCT, STEERING & EQUIP PUMP TO STEERING CON VLV, ALL 4WD,2WD PIN 987900 0 & AFTR (41) - STEERING

1

D126580

PUMP

STEERING AND EQUIPMENT PUMP - parts list Figure 282

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 3

3шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

4

D61500

HOSE

- special, steering and equipment pump to relief valve

1шт.

5

REF

INSTRUCTION

RELIEF VALVE - steering, parts list Figure 293

1шт.

6

218-752

CAP,37 Degree, 7/16"-20

- hex, 7/16" - 20 NF, steering relief valve

1шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Includes: Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

9

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

10

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

D126415

TUBE ASSY.

TUBE - relief valve to tube tee

1шт.

14

D126419

TUBE ASSY.

TUBE - connector to relief valve

1шт.

15

D126425

TUBE ASSY.

TUBE - tee

1шт.

16

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, tube

1шт.

17

D126417

TUBE ASSY.

TUBE - steering and equipment pump to steering control valve

2шт.

18

D69142

HOSE

- special, lower right-hand control valve port

1шт.

19

D71785

HOSE

- special, upper left-hand control valve port

1шт.

20

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 21

2шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

22

D90752

PUMP

CONTROL VALVE - steering, parts list Figure 122, mounting parts on Figure 110

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

D67296

GROMMET

INSULATOR - rubber, tube

8шт.

25

D68646

CLAMP

- tube, double

4шт.

26

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

4шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

28

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.
