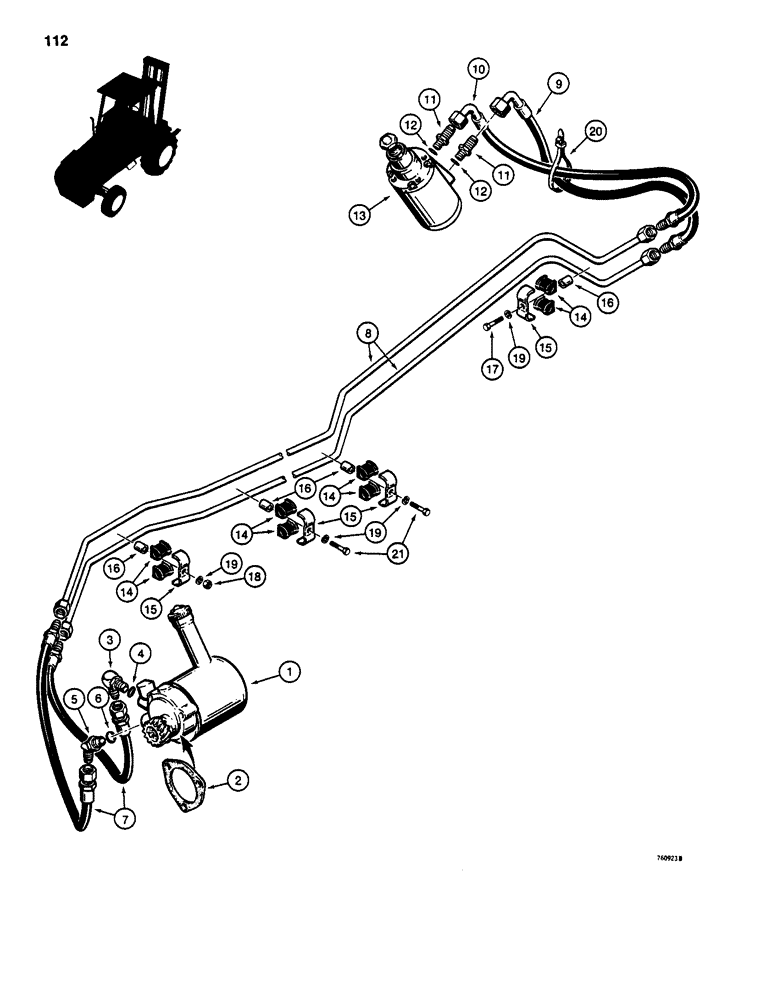

Запчасти Case 586D (112) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE, 2WD MODELS BEF TRAC PIN 9879000 (41) - STEERING

1

D84179

PUMP

STEERING PUMP - parts list Figure 120

1шт.

D84179R

REMAN-HYD PUMP

586D, 2 WD Models Before Tac. P.I.N. 9879000

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

585D, 2 WD Models Before Tac. P.I.N. 9879000

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

584D, 2 WD Models Before Trac. P.I.N. 9879000

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A30042

GASKET

- steering pump

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 4

1шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Incl. Ref 6

1шт.

7

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- 12" (305 mm) long, at steering pump

2шт.

8

D75770

HYD TUBE,0.5" OD x 13.46, 76" L

TUBE - steering pump to steering control valve

2шт.

9

D69142

HOSE

- special, lower right-hand control valve port

1шт.

10

D71785

HOSE

- special, upper left-hand control valve port

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 12

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

13

D90752

PUMP

CONTROL VALVE - steering, parts list Figure 122, mounting parts on figure 110

1шт.

14

D67296

GROMMET

INSULATOR - rubber, tube

8шт.

15

D68646

CLAMP

- tube, double

4шт.

16

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

4шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
