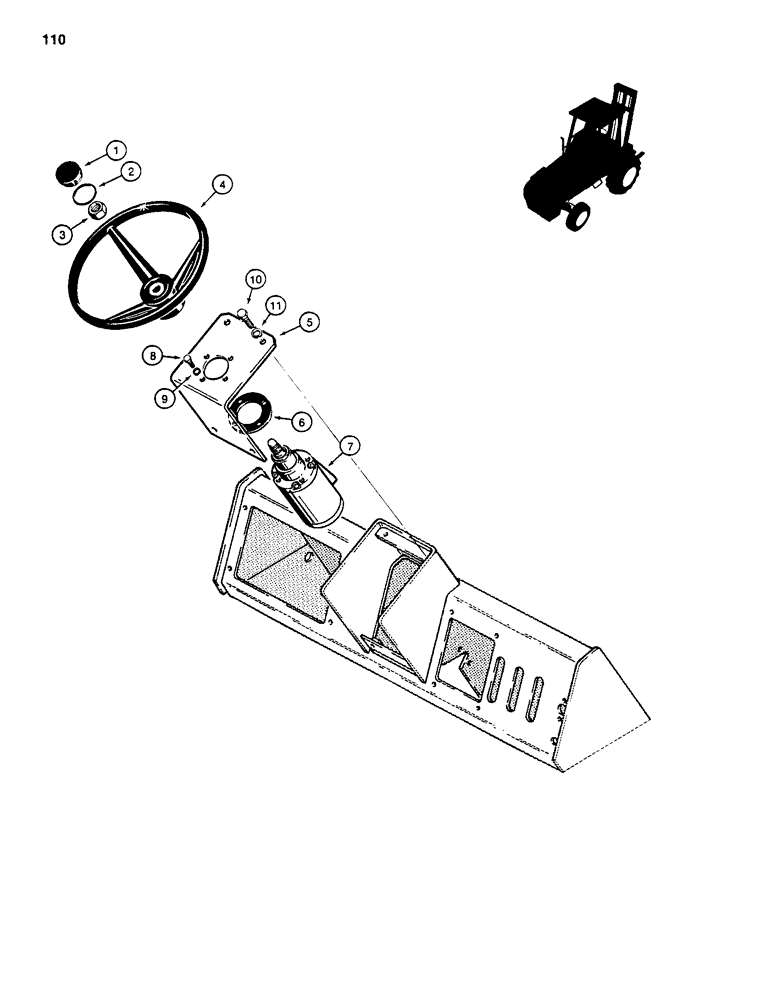

Запчасти Case 586D (110) - STEERING WHEEL AND COLUMN (41) - STEERING

1

A62210

PLUG

CAP - steering wheel nut cover

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- cap seal

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining, supplied with steering control valve

1шт.

4

A65544

STEERING WHEEL

- Tractor

1шт.

5

R35603

LARGE PLATE

PLATE - steering control valve mounting

1шт.

6

D74551

RING

- isolation

1шт.

7

D90752

PUMP

CONTROL VALVE - steering, parts list Figure 122

1шт.

8

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Valve mounting

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Plate mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
