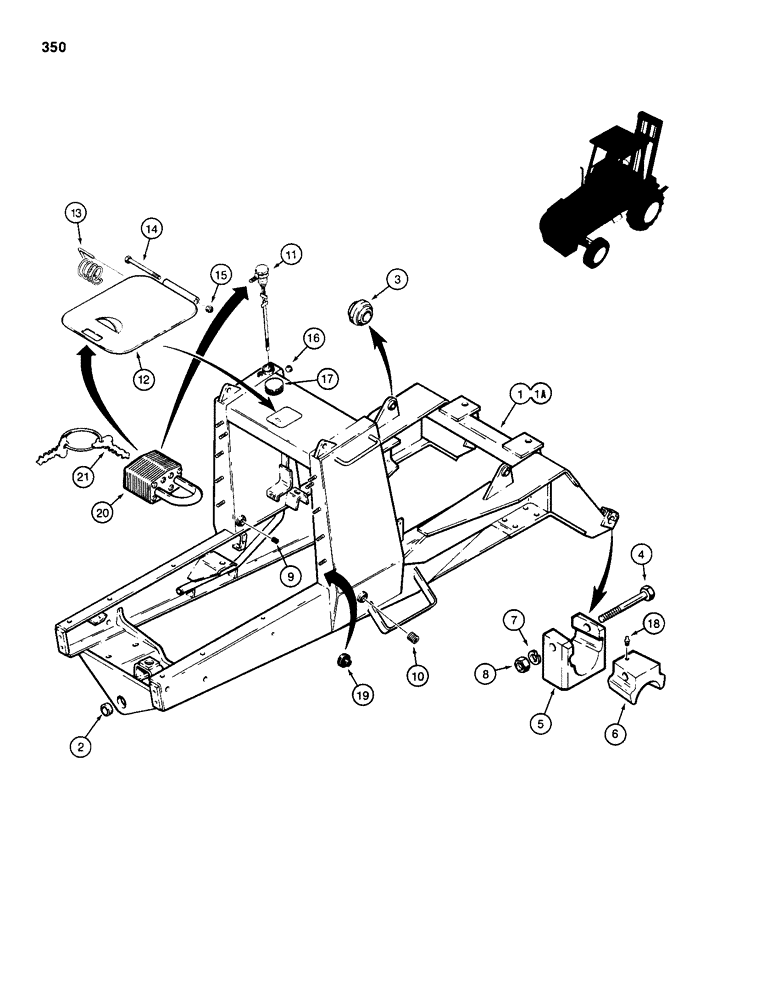

Запчасти Case 586D (350) - CHASSIS (39) - FRAMES AND BALLASTING

1

D121701

PLATFORM

CHASSIS - forklift, includes decals, two wheel drive models, before tractor PIN 9075490, Includes: Ref. 2 - 10

1шт.

1a

D130014

FRAME

CHASSIS - forklift, includes decals, two wheel drive models, tractor PIN 9075490 and after, not shown, interchangeable with D124273 chassis

1шт.

1b

D130013

FRAME

CHASSIS - forklift, includes decals, four wheel drive models, also includes items 8, 12, and 13 on Figure 173, not shown, interchangeable with D125600 chassis

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- rear axle mounting, two wheel drive models only

2шт.

3

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

- self-aligning, mast tilt cylinder and sideshift cylinder mounting

2шт.

D66315

BLOCK

ASSEMBLY - mast trunnion mounting, right-hand, Includes: Ref. 4 - 8

1шт.

D66316

BLOCK

ASSEMBLY - mast trunnion mounting, left-hand, Includes: Ref. 4 - 8

1шт.

4

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

1шт.

5

NSS

NOT SOLD SEPARAT

BLOCK - trunnion mounting, right-hand and left-hand

1шт.

6

NSS

NOT SOLD SEPARAT

WEDGE - trunnion block, right-hand and left-hand

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

3шт.

10

221-37

PLUG

DRAIN PLUG - square socket head, 1-1/4" NPT

2шт.

11

D93915

DIPSTICK

- hydraulic oil

1шт.

12

D120308

LUBRICANT

COVER - fuel

1шт.

13

D121677

SPRING

- cover

1шт.

14

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

1шт.

15

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

1шт.

16

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

17

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3"

1-2шт.

18

219-17

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16", drive

2шт.

19

L60224

BUMPER

- rubber

2шт.

20

D93753

PADLOCK

- fuel cover and hydraulic oil, includes keys, Includes: Ref. 21

2шт.

21

R29555

KEY

- for Master padlock only

2шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.
