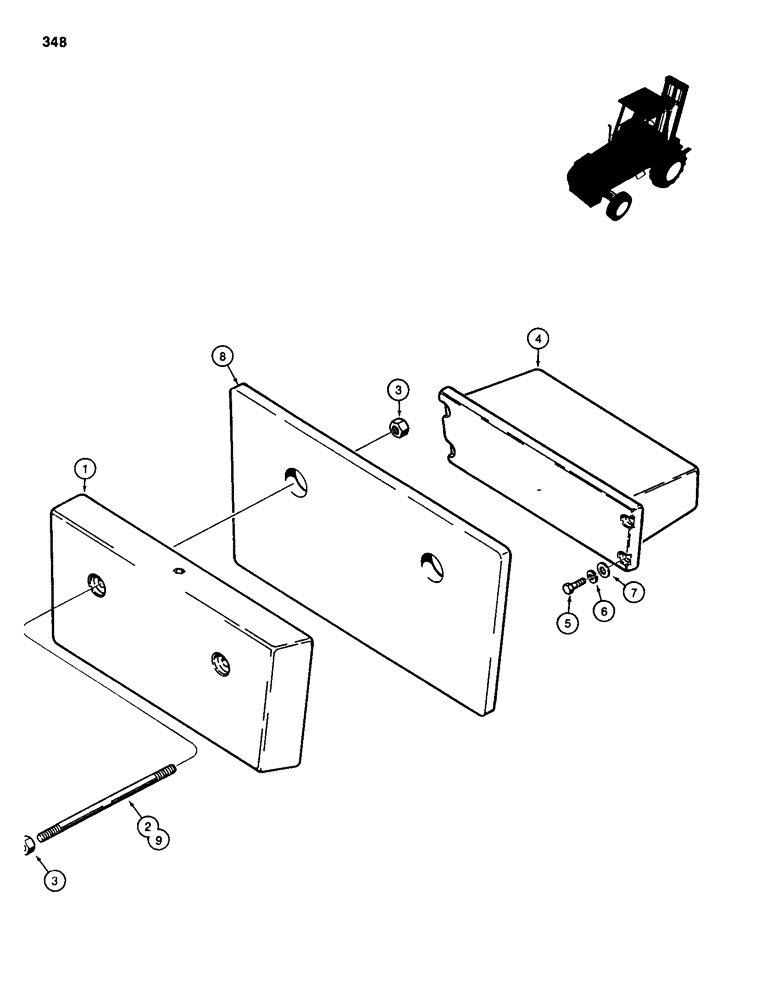

Запчасти Case 586D (348) - REAR COUNTERWEIGHTS (39) - FRAMES AND BALLASTING

1

D70038

WEIGHT

COUNTERWEIGHT - outer

1шт.

2

D120291

STUD

- 3/4" - 10 NC x 15-3/16", used with Ref. 1

2шт.

3

129-108

NUT,3/4"-10, G5

4шт.

4

D91631

WEIGHT

COUNTERWEIGHT - inner

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

8

D122191

WEIGHT

COUNTERWEIGHT - center

1шт.

9

D122192

STUD

- 3/4" - 10 NC x 16-1/8", used when both Refs. 1 and 8 are used

2шт.
