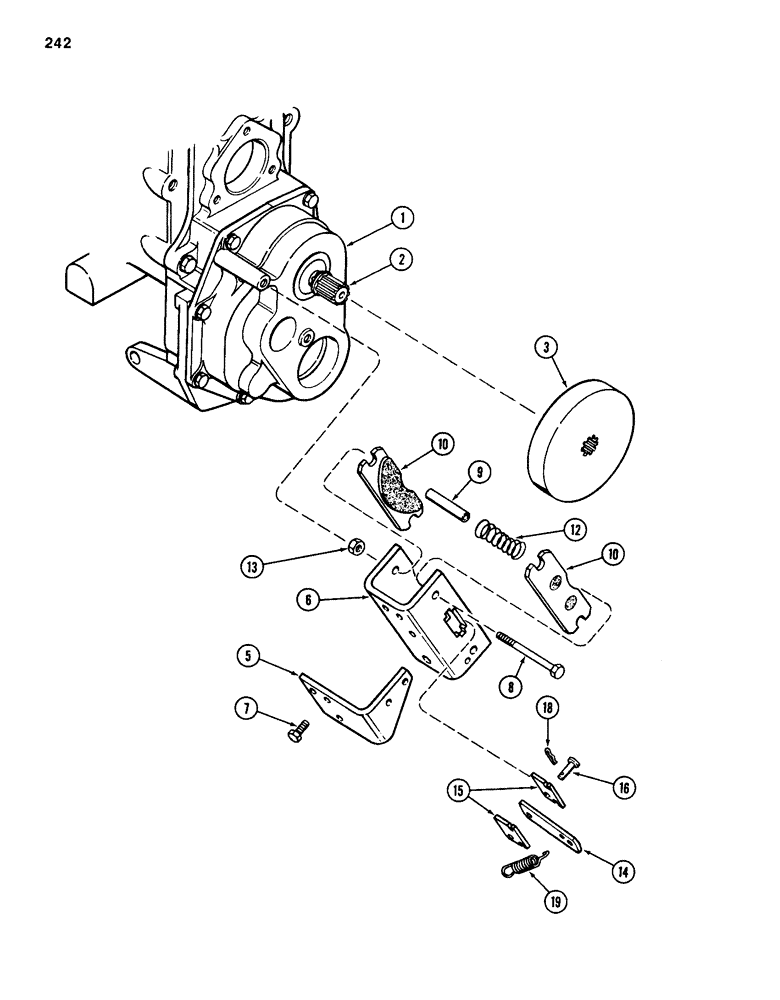

Запчасти Case 585D (242) - TRANSAXLE PARK BRAKE, FOUR WHEEL DRIVE, TRANSMISSION SERIAL NO. 16270319 AND AFTER (33) - BRAKES & CONTROLS

1

REF

INSTRUCTION

COVER - transfer gear box (See Figure 220)

1шт.

2

REF

INSTRUCTION

SPLINE - stub (See Figure 221)

1шт.

3

A168790

DISC

DISK - brake, caliper

1шт.

A182271

BRAKE

ASSEMBLY - park, Includes: Ref. 5 - 19

1шт.

5

A52380

BRACKET

- mounting, cable

1шт.

6

A52256

HOUSING

- brake

1шт.

7

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

8

A52263

BOLT

- retaining, brake

2шт.

9

A52261

SPACER

- stator

2шт.

10

A52255

PAD

- brake

2шт.

12

A52262

SPRING

- compression

2шт.

13

129-144

NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC (Discard)

2шт.

14

A52379

LEVER

- actuating

1шт.

15

A52257

PIVOT

PLATE - pivot

2шт.

16

A52259

PIN

- clevis, pivot

1шт.

18

A52260

PIN

- retainer, pivot pin

1шт.

19

A52264

SPRING

- extension

1шт.
