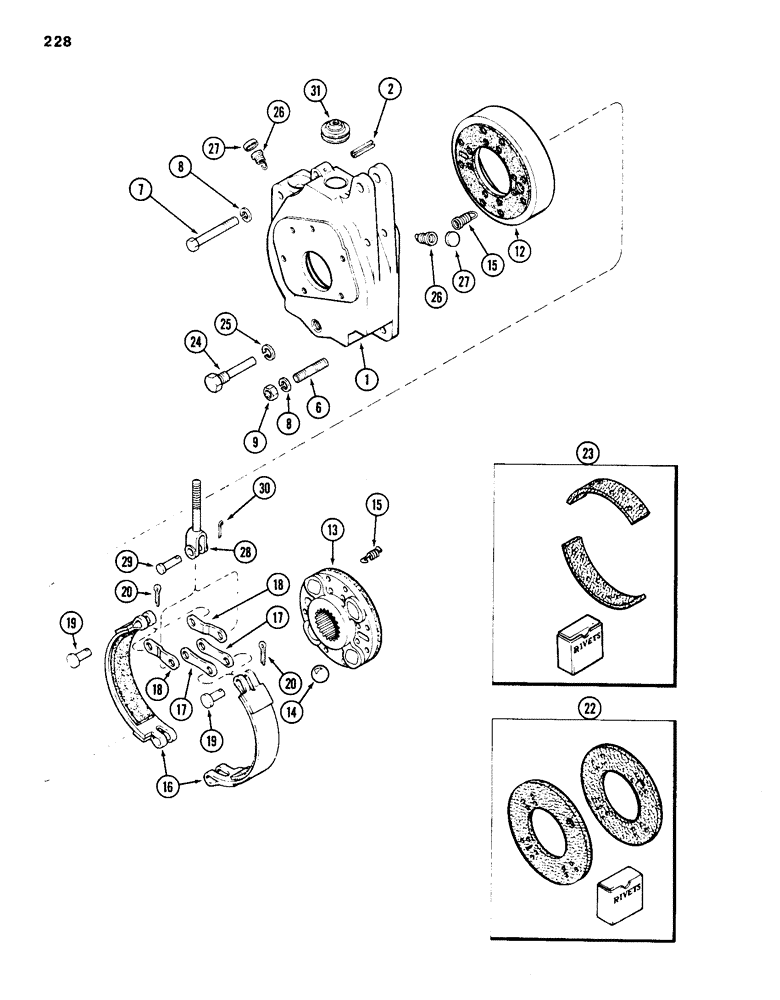

Запчасти Case 585D (228) - TRANSAXLE DIFFERENTIAL BRAKE HOUSING AND BRAKE, PRIOR TO TRANSMISSION SERIAL NO. 16249203 (33) - BRAKES & CONTROLS

1

A152924

COVER

HOUSING - brake, RH, 0.360 diameter anchor pin hole (0.92 mm)

1шт.

1

A152923

BRAKE

HOUSING - brake, LH, 0.360 diameter anchor pin hole (0.92 mm)

1шт.

2

138-2068

PIN,3/8" x 2 1/2", Coiled

2шт.

6

A27637

STUD

- brake housing, 2-5/8 inch

4шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

7

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

8

92-8

LOCK WASHER,1/2"

8шт.

9

25-118

NUT,1/2"-20, G5

- hex, 1/2 inch NC

4шт.

A157157

BRAKE

ASSEMBLY - transaxle (Replaces A156383), Includes: Ref. 12 - 20

2шт.

12

A47886

BRAKE DRUM

DRUM ASSEMBLY - with lining (See Ref. 22)

1шт.

13

A47885

BRAKE DISC

DISC ASSEMBLY - with lining (See Ref. 22)

1шт.

14

211-21

BALL

- 1 inch diameter (25 mm)

4шт.

15

A47524

SPRING

- disc return

2шт.

16

NSS

NOT SOLD SEPARAT

BAND ASSEMBLY - inner, with lining (See Ref. 23) (Reference No. A47938)

2шт.

17

G46345

LINK

- actuating, inner band

2шт.

18

G46344

LINK

- actuating, outer band

2шт.

19

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-bank

2шт.

20

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

22

A44720

LINING

KIT - drum and disc, with rivets (For 1 side only)

2шт.

23

A48372

BRAKE SHOE

LINING KIT - brake bands, with rivets (For 1 side only)

2шт.

24

G15801

BOLT

ANCHOR - brake bands

2шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

A157705

SPRING

- brake band return (Replaces G48507)

4шт.

27

41-13

GUARD,Exp, 13/16"

- expansion, return spring hole, 13/16 inch (21 mm)

4шт.

28

A154737

ROD

- brake actuating

2шт.

29

141-64

CLEVIS PIN,7/16" x 1.190"

rod to brake links 7/16" x 1.190"

2шт.

30

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

31

A135946

DUST CAP

SEAL - dust, brake housing

2шт.
