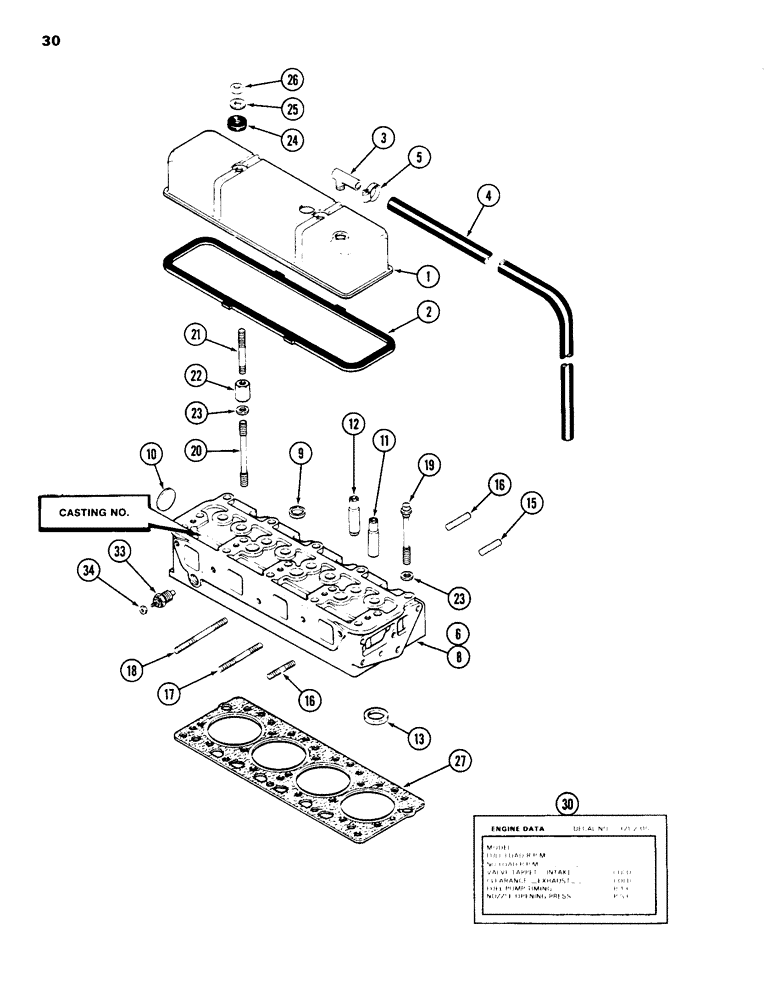

Запчасти Case 585D (030) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (10) - ENGINE

1

A36815

COVER

- cylinder head

1шт.

2

A43030

GASKET,3.05mm Thk

- cover to cylinder head

1шт.

3

A9155

90 ELBOW

- breather

1шт.

4

A39570

HOSE

- breather hose

1шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - breather hose, 9/16 to 1-1/16 inch

1шт.

6

AR153262

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, with valves, springs and retainers (Remanufactured)

1шт.

6

AC153262

CORE-CYLINDER HEAD

RETURN NUMBER - head, with valves, springs and retainers (Use this number when returning head for credit)

1шт.

6

A153261

CYLINDER BLOCK

HEAD ASSEMBLY - cylinder (New) (with cast push rod holes) (Casting No. A150384)

1шт.

8

A166029

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New) (with drilled push rod holes) (Casting No. A155925), Includes: Ref. 9 - 18

1шт.

8

AR166029

HEAD ASSEMBLY - cylinder, with valves, springs and retainers (Remanufactured), Includes: Ref. 9 - 18

1шт.

8

AC166029

RETURN NUMBER - head, with valves, springs, and retainers (Use this number when returning head for credit), Includes: Ref. 9 - 18

1шт.

9

41-1016

PLUG,Cup, 1"

- cup type, top, 1 inch (25 mm)

3шт.

10

41-1028

PLUG,Cup, 1 3/4"

- cup type, rear, 1-3/4 inch (44 mm)

1шт.

11

G2069

GUIDE

- exhaust valve (Replaces A152489)

4шт.

12

G2068

GUIDE

- intake valve (Replaces A152488)

4шт.

13

G47078

INSERT - exhaust valve seat (Replaces A39268)

4шт.

15

A29431

STUD

- exhaust manifold, ends, 3/8 inch NC x 1-3/4 inch

2шт.

16

A140924

STUD

- manifold, 2-7/16 inch

5шт.

17

A153248

STUD

- intermediate, 4-13/16 inch

2шт.

18

A51500

STUD

- center, 5-5/16 inch

1шт.

19

A39047

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 3-1/2 inch

4шт.

19

A39048

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 5-1/8 inch

11шт.

19

A39049

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 5-5/8 inch

2шт.

20

A36902

STUD

- lower, 5-5/8 inch

2шт.

21

A51271

STUD

- cover, 3-3/4 inch

2шт.

22

A51114

NUT

- head studs, 1/2 inch and 3/8 inch NC

2шт.

23

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- stud nut

19шт.

24

A142098

GROMMET

- cover

2шт.

25

195-137

WASHER,13/32" x 1 1/8" x .180"

- flat, 13/32 x 1-1/8 x 3/16 inch (10 x 29 x 5 mm)

2шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

27

A148745

CYLINDER HEAD GASKET

- cylinder head

1шт.

30

321-5856

DECAL - engine data

1шт.

33

D65446

SENDER UNIT

UNIT - sending, engine temperature

1шт.

34

193-1000

NUT,Keps, w/LW,#10-32

- hex, No. 10 NF

1шт.
