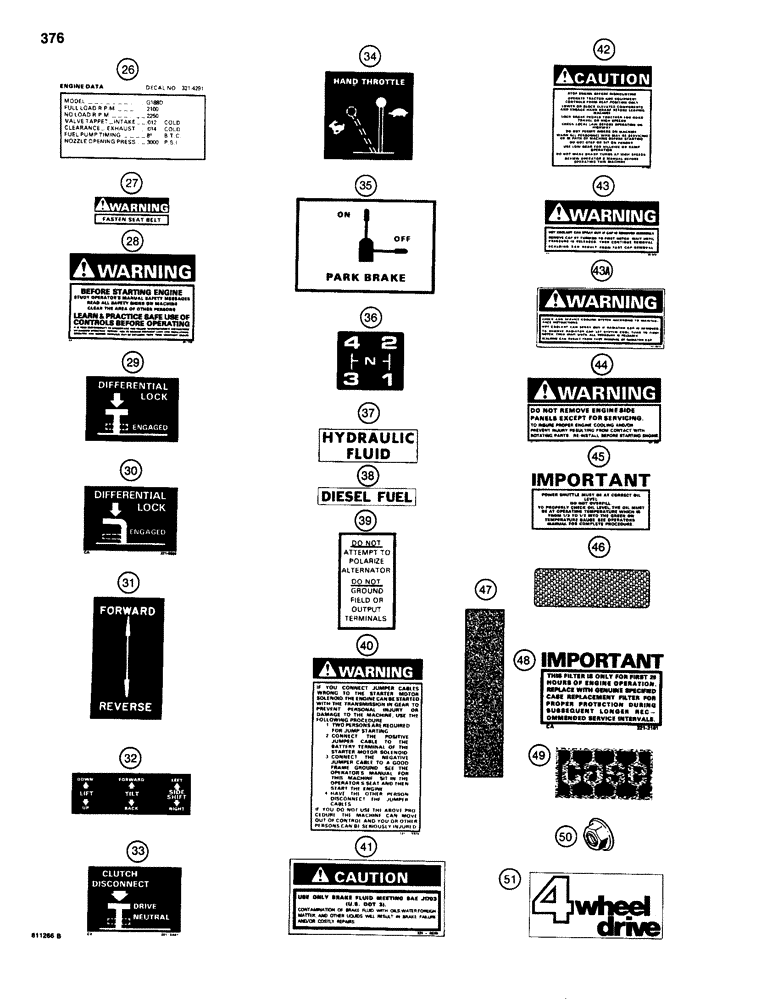

Запчасти Case 585D (376) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

N7690

KIT

- includes black decals, if used, Includes: Ref. 26 - 47 and Ref. 1 - 25 on Figure 374

1шт.

D128098

KIT

- includes brown decals, if used, Includes: Ref. 26 - 47 and Ref. 1 - 25 on Figure 374

1шт.

26

321-4291

DECAL

- engine data

1шт.

27

321-3060

DECAL

- Warning, Fasten Seat Belt

1шт.

28

321-3705

DECAL

- Warning, before starting engine

1шт.

29

321-1646

DECAL

- Differential Lock control pattern, if used

1шт.

30

321-5598

DECAL

- Differential Lock control pattern, D128098 kit only

1шт.

31

321-2145

DECAL

- shuttle lever control pattern

1шт.

32

321-3902

DECAL

- lift, tilt, and sideshift control pattern

1шт.

33

321-5441

DECAL

- Clutch Disconnect control pattern

1шт.

34

321-3907

DECAL

- Hand Throttle control pattern

1шт.

35

321-2066

DECAL

- Park Brake control pattern

1шт.

36

321-3904

DECAL

- gear shift control pattern

1шт.

37

321-229

DECAL

- Hydraulic Fluid

1шт.

38

321-230

DECAL

- Diesel Fuel

1шт.

39

321-1061

DECAL

- alternator instructions

1шт.

40

321-5974

DECAL

- Warning, jump start procedure

1шт.

41

321-6630

DECAL

- Caution, brake fluid

2шт.

This decal is only to be used on models without the self filling brake master cylinders.

1шт.

42

321-3903

DECAL

- Caution, safety warnings

1шт.

43

321-5734

DECAL

- Warning, hot coolant, no longer used, order 321-6672 decal

1шт.

43a

321-6672

DECAL

- Warning, check and service cooling system

1шт.

44

321-5701

DECAL

- Warning, rotating parts

2шт.

45

321-3882

DECAL

- Important, power shuttle oil level

1шт.

46

D87870

DECAL

- reflector, red

2шт.

47

D55216

PAD,2" x 9"

STRIP - anti-skid, steps

6шт.

48

321-2101

DECAL

- Important, replace filter

1шт.

49

321-4739

EMBLEM

ELBLEM - Case, on grille

1шт.

50

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push, attaches emblem to grille

2шт.

51

D121390

DECAL

- 4 wheel drive, black, if used, order separate from kit

2шт.

51

D123949

DECAL

- 4 wheel drive, brown, if used, order separate from kit

2шт.

52

321-4614

TAG

- Do Not Operate, not shown

1шт.
