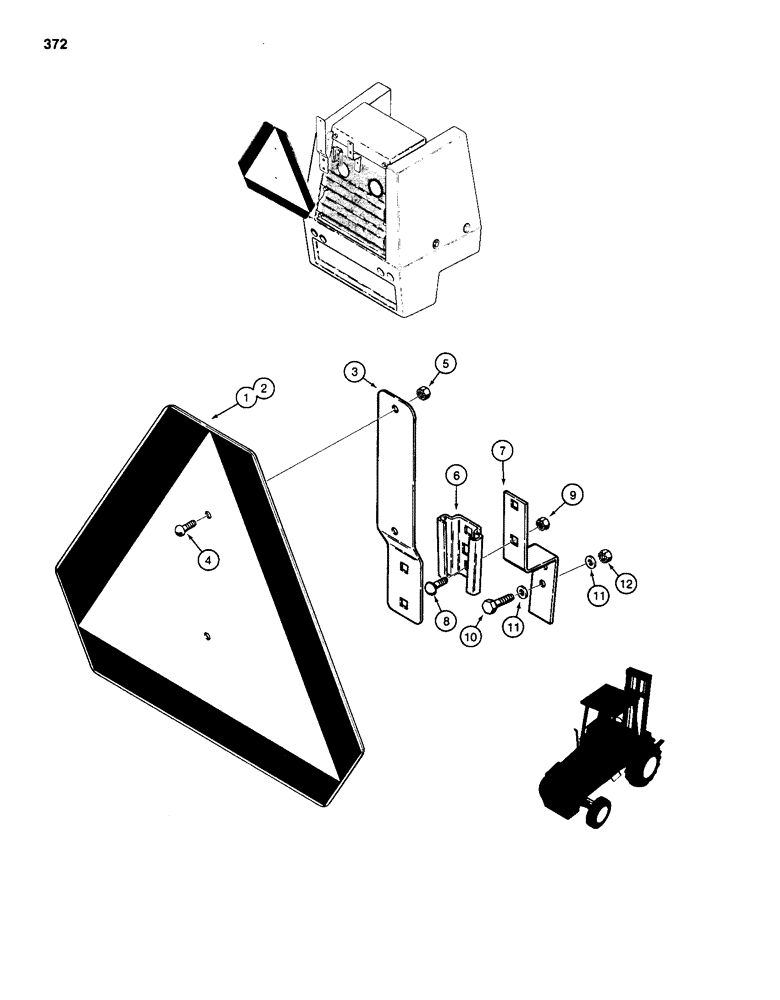

Запчасти Case 585D (372) - SLOW MOVING VEHICLE EMBLEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

A59450

WARNING SIGN

EMBLEM ASSEMBLY - SMV, riveted construction, replaces bolted construction, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

2

321-4311

DECAL

- slow moving vehicle emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem mounting

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated

2шт.

5

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT AND LOCK WASHER - No. 10 - 24 NC, plated

2шт.

6

A59457

BRACKET

SOCKET - emblem mounting

1шт.

7

D73260

BRACKET

-, Serial Range: socket-grille

1шт.

8

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

- short neck, 5/16" - 18 NC x 3/4", plated

2шт.

9

193-1009

NUT,Keps, w/LW, 5/16"-18

AND LOCK WASHER - 5/16" - 18 NC, plated

2шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

12

193-1006

NUT,Keps, w/LW, 1/4"-20

AND LOCK WASHER - 1/4" - 20 NC, plated

2шт.
