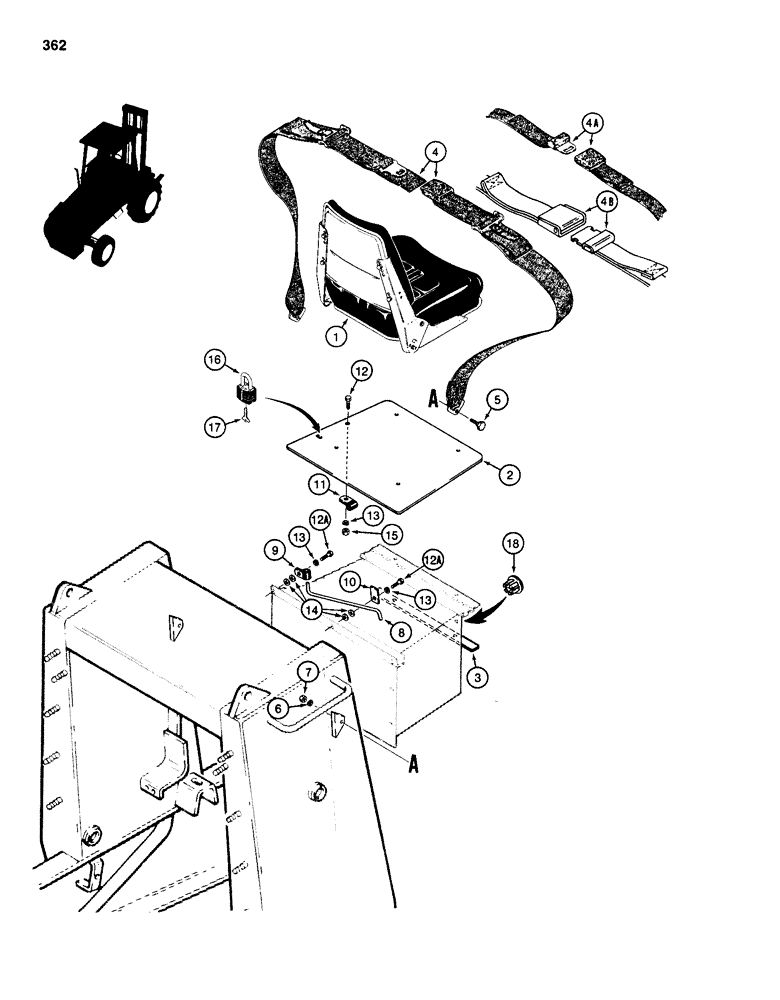

Запчасти Case 585D (362) - SEAT MOUNTING PARTS AND SEAT BELTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, for correct assembly and components see Figures 365-369

1шт.

2

D67376

PLATE

- seat mounting

1шт.

3

D68335

PLATE

- hinge reinforcement

1шт.

4

D85816

SAFETY BELT

BELT - seat, 3" (76 mm) wide, if used

1шт.

4a

D75997

SAFETY BELT ,1.80" W

No longer used, Order D133870 seat belt 1.80" W

1шт.

4b

D133870

SAFETY BELT

BELT - seat, 2" (51 mm) wide, with anti-creep slides, if used

1шт.

5

F42236

STEP BOLT

SHOULDER BOLT - 7/16" - 20 NF x 1-1/4", plated

2шт.

6

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

7

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.

8

D77709

ROD

- seat support

1шт.

9

49851

SHIELD

- support rod

1шт.

10

D49640

BLOCK

PLATE - rod retaining

1шт.

11

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- on seat mounting plate

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12a

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

D93753

PADLOCK

- seat mounting plate, for battery, if used, Includes: Ref. 17

1шт.

17

R29555

KEY

- for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

18

205-75

PLUG,13/32"

- button, 1/4" (6.35 mm) diameter, fuel shutoff cable hole

1шт.
