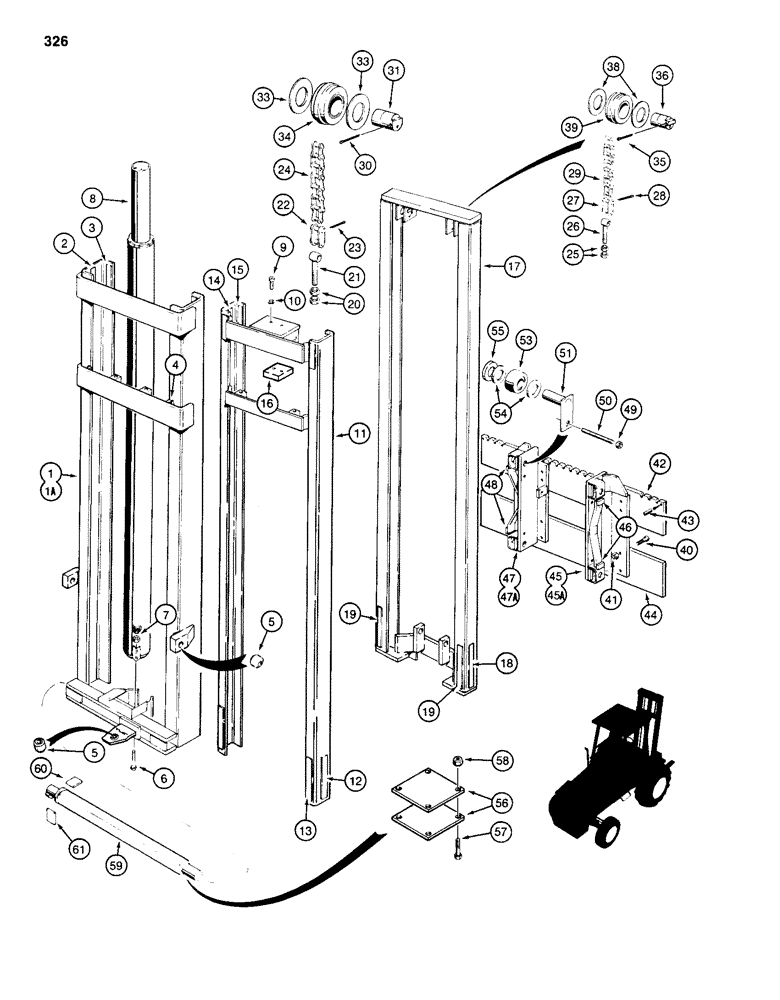

Запчасти Case 585D (326) - 21-1/2 FOOT (6.5 M) MAST FOR 585D (83) - TELESCOPIC SINGLE ARM

D121920

MAST ASSEMBLY

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 61

1шт.

1

D75939

FRAME - outer, used before mast SN 52668

1шт.

1a

N8801

FRAME ASSY

FRAME - outer, used on mast SN 52668 and after, Includes: Ref. 2 - 5

1шт.

2

D55411

STRIP

WEAR PLATE - 1/8" (3 mm) x 6" (152 mm)

2шт.

3

D55409

STRIP

WEAR PLATE - 3/16" (5 mm) x 6" (152 mm)

4шт.

4

D47895

WEAR PAD

WEAR PLATE - 5/16" (8 mm) x 4-1/2" (114 mm)

2шт.

5

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

BEARING - self-aligning

3шт.

6

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

- hex head, 7/16" - 14 NC x 6", plated

1шт.

7

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

8

N7643

CYLINDER

- lift, parts list figure 296

1шт.

9

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

BOLT - hex socket head, self-locking, 1/2" - 20 NF x 2"

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

D74410

FRAME ASSY

FRAME - center, Includes: Ref. 12 - 15

1шт.

12

D55412

STRIP

WEAR PLATE - 1/8" (3 mm) x 10" (254 mm)

2шт.

13

D55410

STRIP

WEAR PLATE - 3/16" (5 mm) x 10" (254 mm)

4шт.

14

D55411

STRIP

WEAR PLATE - 1/8" (3 mm) x 6" (152 mm)

2шт.

15

D55409

STRIP

WEAR PLATE - 3/16" (5 mm) x 6" (152 mm)

4шт.

16

D74412

PLATE

- spacer

1шт.

17

D74411

FRAME

- inner, Includes: Ref. 18 and 19

1шт.

18

D27362

WEAR PAD

WEAR PLATE - 1/8" (3 mm) x 10" (254 mm)

2шт.

19

D27365

PAD

WEAR PLATE - 3/16" (5 mm) x 10" (254 mm)

4шт.

20

129-130

NUT,1"-14, G5

- hex, 1" - 14 NF, plated

4шт.

21

N6877

BOLT

- inner chain

2шт.

22

N6878

CHAIN LINK

LINK - connecting, inner chain, Includes: Ref. 23

4шт.

23

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

24

D73665

CHAIN (AG)

CHAIN - inner, 95 links

2шт.

25

129-128

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF, plated

4шт.

27

N6010

LINK,50.749mm Pitch

- connecting, outer chain, Includes: Ref. 28

4шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

29

D74408

CHAIN (AG)

CHAIN - outer, 111 links

2шт.

30

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

31

N7324

KIT

PIN - guide wheel, inner chain, service, includes grease fitting not required, Includes: Ref. 32

2шт.

32

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

33

D36582

WASHER

THRUST WASHER - inner wheel

4шт.

34

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - guide, inner chain

2шт.

35

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

36

D87070

PIN

- wheel, service, includes grease fitting not required, Includes: Ref. 37

2шт.

37

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

38

60944

THRUST WASHER

THRUST WASHER - wheel, outer chain guide

4шт.

39

D87069

SPROCKET ASSY.

WHEEL - guide, sealed, outer chain

2шт.

40

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

41

129-145

JAM NUT,Jam, 1/2"-13, G5

16шт.

42

D74406

LARGE PLATE

BACK PLATE - upper

1шт.

43

138-2050

PIN,7/16" x 2", Coiled

2шт.

44

D74405

PLATE

BACK PLATE - lower

1шт.

45

D55405

SHEET

CARRIAGE - right-hand, used before mast SN 52668

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

45a

N8805

SUPPORT ASSY.

CARRIAGE - right-hand, used on mast SN 52668 and after, Includes: Ref. 46

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

46

D55407

WEAR PAD

WEAR PLATE - bronze, D55405 or N8805 carriage

2шт.

47

D55406

SHEET

CARRIAGE - left-hand, used before mast SN 52668

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

47a

N8806

SUPPORT ASSY.

CARRIAGE - left-hand, used on mast SN 52668 and after, Includes: Ref. 48

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

48

D55407

WEAR PAD

WEAR PLATE - bronze, D55406 or N8806 carriage

2шт.

49

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

50

178-692

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

- hex socket headless, 1/2" - 13 NC x 2-3/4", oval point

4шт.

51

D86606

AXLE

PIN - roller, service, includes grease fitting not required, Includes: Ref. 52

4шт.

52

211-5

BALL,3/16" Dia

- 3/16", grade 200, chrome alloy steel, if used, not shown

1шт.

53

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

ROLLER - load

4шт.

54

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

THRUST WASHER - roller

8шт.

55

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

THRUST WASHER - roller

4шт.

56

D88745

LARGE PLATE

PLATE - trunnion bar ends

4шт.

57

113-177

BOLT,Hex, 5/16" - 18 x 3", Gr 5

8шт.

58

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.

59

D75934

BAR

- trunnion

1шт.

60

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

61

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.
