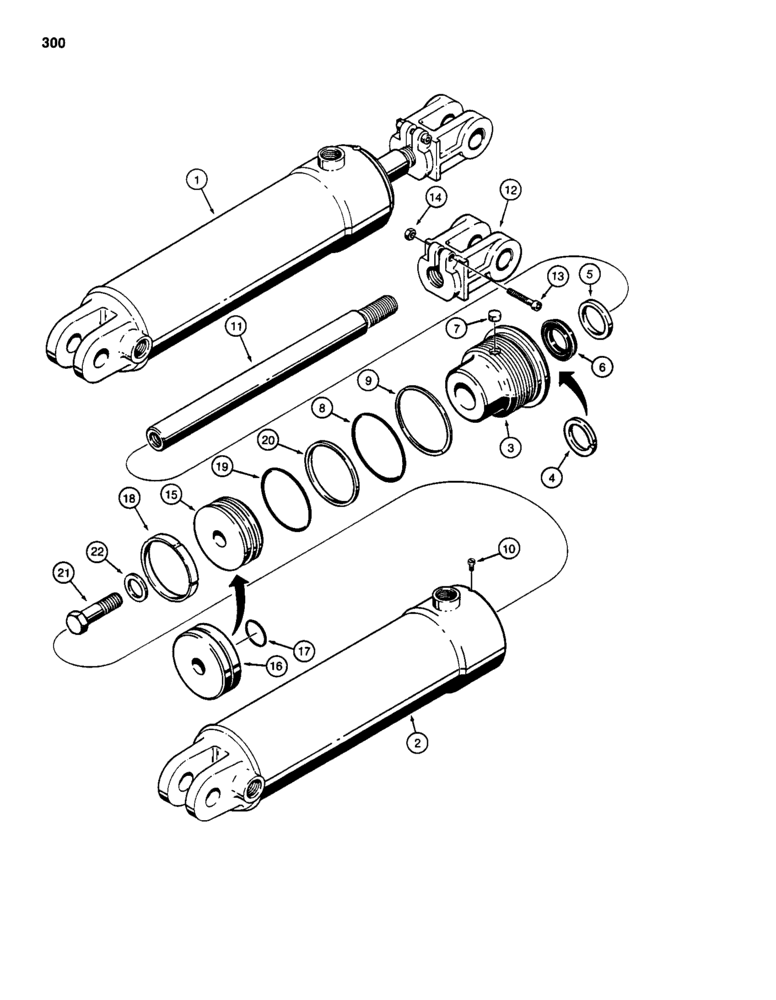

Запчасти Case 585D (300) - G34196 AND G34197 TILT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

G34196

CYLINDER

- hydraulic, tilt, left-hand, 3" ID (76 mm) x 10" (254 mm) stroke, Includes: Ref. 2 - 22

1шт.

1

G34197

CYLINDER ASSY.

CYLINDER - hydraulic, tilt, right-hand, 3" ID (76 mm) x 10" (254 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G34198

TUBE,16.69" L

- G34196 cylinder, left-hand

1шт.

2

G34199

TUBE,16.69" L

- G34197 cylinder, right-hand

1шт.

G104244

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of seal kit P/N G109463

1шт.

5

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of seal kit P/N G109463

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of seal kit P/N G109463

1шт.

6

G100776

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

7

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of seal kit P/N G109463

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of seal kit P/N G109463

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex head, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated, if used

1шт.

11

G34195

ROD

- piston, 1-1/4" (32 mm) diameter

1шт.

12

G34262

CLEVIS,1" - 12

- adjustable, piston rod, Includes: Ref. 13 and 14

1шт.

13

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

G34202

PISTON

- cylinder, double groove, if used

1шт.

16

G104106

PISTON

- cylinder, single groove, if used

1шт.

17

A59066

O-RING,1.239" ID x 1.379" OD

- small, used with Ref. 16 only

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston, used with Ref. 15 only

1шт.

Part of seal kit P/N G109463

1шт.

19

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of seal kit P/N G109463

1шт.

20

G32034

RING

SEAL - piston

1шт.

Part of seal kit P/N G109463

1шт.

21

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

G109463

GASKET KIT

KIT - seal, Includes: Refs. 4, 5, 6, 8, 9, 18, 19 and 20

1шт.
