Запчасти Case 585D (298) - FREE LIFT MAST LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

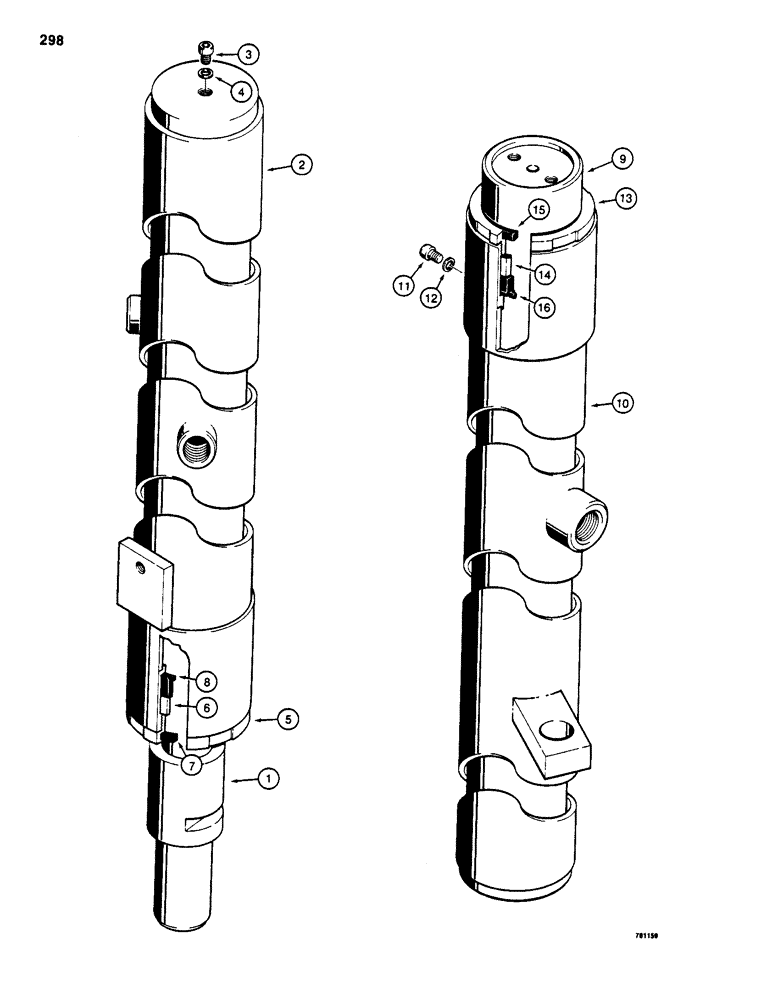

Схема запчастей Case 585D - (298) - FREE LIFT MAST LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS
16
14
4
11
2
13
7
12
1
5
3
8
10
15
6
9

Артикул

Название

Примечание

Количество

N7650

CYLINDER

- lift, center, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder, outer

1шт.

3

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

4

D24252

WASHER

- special

1шт.

5

D87296

NUT

- packing

1шт.

6

D87297

RING

- packing

1шт.

D87289

SET OF PARTS

KIT - seal, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - solid type

1шт.

8

NSS

NOT SOLD SEPARAT

RING - packing

1шт.

N7648

CYLINDER ASSY.

CYLINDER - lift, right-hand

1шт.

N7649

CYLINDER

- lift, left-hand, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder, outer

1шт.

11

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

12

D24252

WASHER

- special

1шт.

13

D87298

NUT

- packing

1шт.

14

D87299

PACKING RING

RING - packing

1шт.

D87288

SET OF PARTS

KIT - seal, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - solid type

1шт.

16

NSS

NOT SOLD SEPARAT

RING - packing

1шт.

Выбрано товаров: 21
