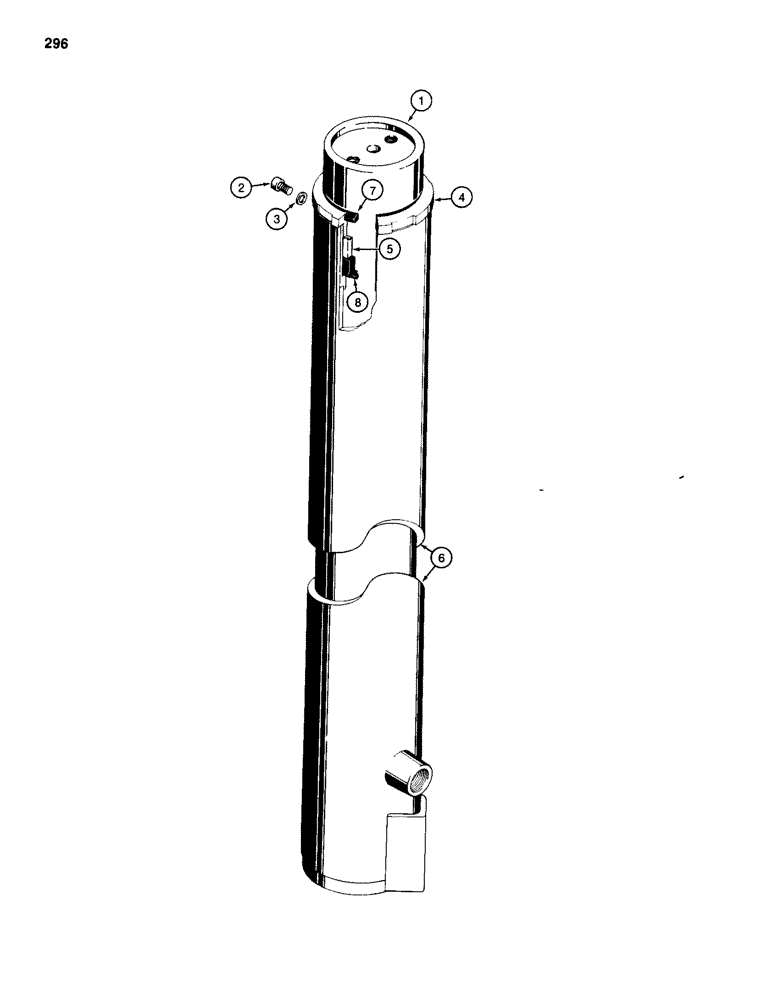

Запчасти Case 585D (296) - MAST LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS
8
7
1
4
5
2
3
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
N7642
CYLINDER ASSY.
CYLINDER - lift, 4" (102 mm) ID x 71-11/16" (1921 mm) stroke, 12' (3.6 m) masts, Includes: Ref. 1 - 8
1шт.
N7643
CYLINDER
- lift, 4" (102 mm) ID x 85-3/16" (2164 mm) stroke, 14-1/4' (4.3 m) masts and 21-1/2' (6.5) masts
1шт.
N7644
CYLINDER ASSY.
CYLINDER - lift, 4" (102 mm) ID x 111-11/16" (2837 mm) stroke, 28' (8.5 m) masts, Includes: Ref. 1 - 8
1шт.
2
61-46
HEX SOC SCREW,1/4"-20 x 3/8"
SCREW - hex socket head, 1/4" - 20 NC x 3/8"
1шт.
D82792
SEAL
KIT - cylinder packing, used on Mast SN 42274 and after, Includes: Ref. 7 and 8
1шт.
