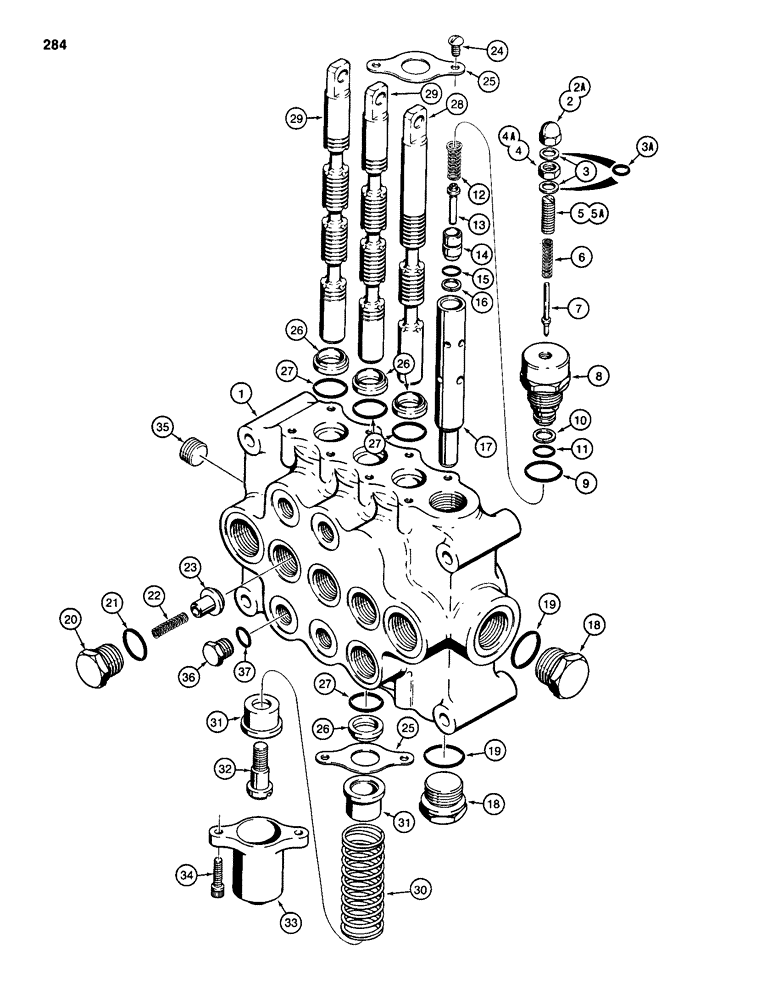

Запчасти Case 585D (284) - D120040 FORKLIFT CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D120040

PIN

CONTROL VALVE ASSEMBLY - forklift, Husco No. 3303-110, no longer available, for service order D124427, see figure 288, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

N7488

VALVE, PRESSURE RELI

MAIN RELIEF VALVE ASSEMBLY - control valve, Includes: Ref. 2 - 17

1шт.

2

129-526

CROWN NUT,Low, 3/8" - 24

DOME NUT - 3/8" - 24 NF, used with Ref. 3

1шт.

2a

S116073

CAP

DOME NUT - 3/8" - 24 NF, has O-ring groove, used with Ref. 3A

1шт.

3

D32117

COPPER WASHER

WASHER, COPPER, Used with Refs. 2 and 4 only

2шт.

3a

S116070

O-RING

- used with Refs. 2A and 4A only

2шт.

4

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF, used with Ref. 3

1шт.

4a

S116072

JAM NUT

- hex, special, 3/8" - 24 NF, has O-ring groove, used with Ref. 3A

1шт.

5

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW - main relief valve, used with Refs. 2, 3, and 4 only

1шт.

5a

NSS

NOT SOLD SEPARAT

ADJUSTING SCREW - main relief valve, used with Refs. 2A, 3A, and 4A only

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

7

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- relief valve body

1шт.

10

D75841

OIL SEAL

BACKUP RING - internal

1шт.

11

S116070

O-RING

- internal

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING - inner

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

15

N6417

O-RING,0.364" ID x 0.504" OD x 0.07"

- piston

1шт.

16

C11865

RING

BACKUP RING - piston O-ring

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve

1шт.

18

S62127

PLUG

- valve

2шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

2шт.

20

S48057

PLUG

- load check valve

3шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

3шт.

22

S48065

SPRING

- load check valve

3шт.

23

S48056

VALVE POPPET

POPPET - load check valve

3шт.

24

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 3/8", plated, plate attatching, spool end

6шт.

25

S48043

PLATE

- spool end

6шт.

26

D75838

SEAL

WIPER - spool

6шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

6шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - lift circuit

1шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - tilt and sideshift circuit

2шт.

30

S48046

SPRING

- spool

3шт.

31

S48044

SEAT

- spring

6шт.

32

S48045

BOLT

SCREW - spool end

3шт.

33

S48042

CAP

COVER - spool end

3шт.

34

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT - hex socket head, 1/4" - 20 NC x 7/8", spool cover

6шт.

35

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

36

76349

PLUG,9/16" - 18 ORB

Upper and lower valve ports, Not required when sideshift attachment is used, Incl. Ref. 37 Hex Hd, 9/16"-18 ORB

2шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.
