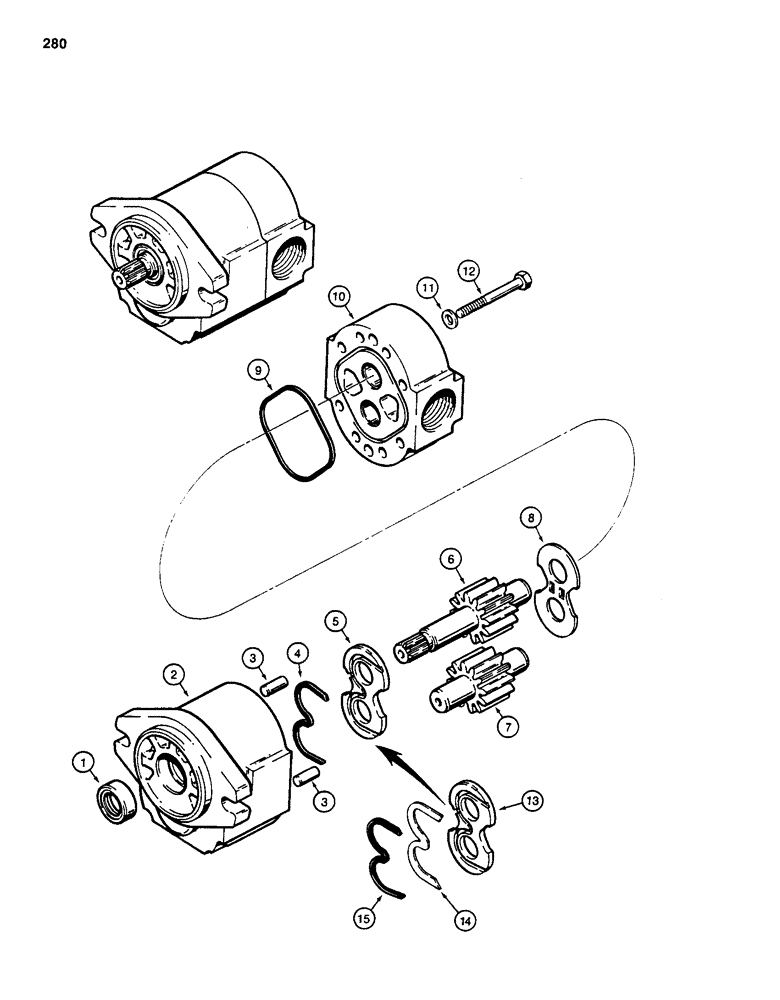

Запчасти Case 585D (280) - D73079 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

D73079

PUMP

HYDRAULIC PUMP - Warner Motive S30S-24E-J5-3-L, Includes: Ref. 1 - 15

1шт.

1

D73624

SEAL

OIL SEAL - shaft

1шт.

2

D74415

BODY

- shaft end

1шт.

3

D58188

PIN

DOWEL PIN - body and cover

2шт.

4

D73620

SEAL

OIL SEAL - wear plate, one-piece, used with tin wear plate (Ref. 5) only, if used, no longer available, order Refs. 13-15

1шт.

5

D73619

PLATE

WEAR PLATE - gear, tin, used with one-piece oil seal (Ref. 4), no longer available, order Refs. 13-15

1шт.

6

D74416

GEAR

DRIVE GEAR - hydraulic pump

1шт.

7

D74417

GEAR

DRIVEN GEAR - hydraulic pump

1шт.

8

D73623

PLATE

THRUST PLATE - gear

1шт.

9

D73622

SPECIAL RING

SEAL - square section

1шт.

10

D73615

COVER

- port end

1шт.

11

D74441

WASHER

- special

8шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

8шт.

13

N9773

PLATE

WEAR PLATE - gear, bronze, used with two seals (Refs. 14 and 15)

1шт.

14

N9772

SEAL

- flat, wear plate

1шт.

15

N9771

SEAL

- grooved, wear plate

1шт.
